사양 정보
-
Accuracy
(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F
적용 분야
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth® interface for remote operation via Endress+Hauser SmartBlue App.
Bluetooth®-enabled temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
Improved process efficiency and increased plant uptime
Universal input for RTD, TC, resistance transmitters (Ω), voltage transmitters (mV)

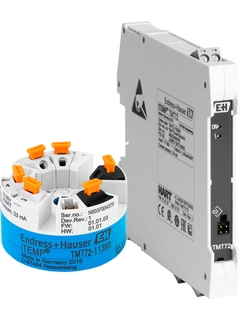

Installation in terminal head form B (flat face) as per DIN EN 50446
Installation in cabinets with DIN rail housing

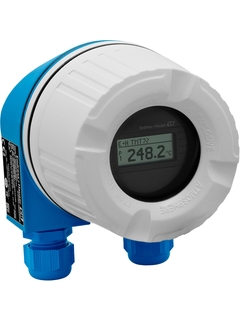

Optional installation in field housing even for use in Ex d applications
장점
-
Safe operation in hazardous areas thanks to international approvals
-
Reliable operation thanks to sensor and device monitoring
-
Integrated Bluetooth® interface for the wireless display of measured values and configuration via E+H SmartBlue (app), optional
-
Diagnostics information according to NAMUR NE 107
-

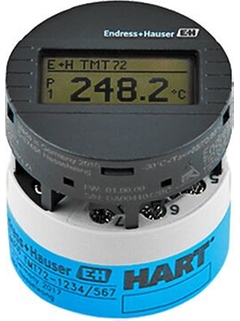

Available with plug-on display TID10
Optimization of the measurement accuracy by sensor-transmitter matching.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
요약 지침서(KA)
iTEMP TMT71, TMT72 사용 설명서 요약
4 ~ 20 mA 아날로그 출력을 지원하는 TMT71
HART® 통신을 지원하는 TMT72EN KO 29/05/201913/11/2018언어:
한국어
버전:
29/05/2019
파일 크기:
2.7 MB
파일 이름:
KA01414TKO_0219.pdf
-
-
-
Ex 안전 지침서(XA)
iTEMP TMT71, TMT72 Control Drawing CSA Ex ia, Ex ec
Temperature transmitter
Installation notes for hazardous locations
Intrinsical safety, increased safety언어:
영어
버전:
26/06/2023
파일 크기:
277.7 KB
파일 이름:
10000010382.pdf
-
-
-
Ex 안전 지침서(XA)
iTEMP TMT71, TMT72 Control Drawing CSA Ex ia, Ex ec
Temperature transmitter
Installation Notes for hazardous locations
Intrinsical safety, increased safety언어:
영어
버전:
26/06/2023
파일 크기:
327 KB
파일 이름:
10000010389.pdf
-
-
-
Ex 안전 지침서(XA)
XA iTEMP TMT71, TMT72, TMT82, TMT84, TMT85, TMT86, TMT182B
ATEX:
Ex ia IIIC Txxx °C Dc, Ex tc IIIC Txxx °C Dc
Ex tc IIIC Txxx °C Dc, Ex tc IIIC Dc
Ex nA IIC T6 Gc, Ex ec IIC T6 Gc
Ex nA IIC Gc, Ex ec IIC Gc -
-
-
Ex 안전 지침서(XA)
iTEMP TMT71, TMT72
Temperature transmitter
Ex ia IIC T4...T6 Ga
Ex ia IIC T4...T6 Gb
Ex ia [ia Ga] IIC T4...T6 Gb
Ex ib [ia Ga] IIC T4...T6 GbEN KO 23/12/2022언어:
영어
버전:
23/12/2022
파일 크기:
489.9 KB
파일 이름:
XA03097TEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
iTEMP TMT71, TMT72 Control Drawing CSA XP, DIP
Temperature field Transmitter
Installation notes for hazardous locations
(Explosion proof and Dust ignition proof)언어:
영어
버전:
26/06/2023
파일 크기:
172.2 KB
파일 이름:
10000010390.pdf
-
-
-
Ex 안전 지침서(XA)
iTEMP TMT71, TMT72
Temperature transmitters
EAC:
1Ex db IIC T6...T4 Gb X
Ex tb IIIC T85°C...T105°C Db X
0Ex ia IIC T6...T4 Ga XEN KO 01/08/2021언어:
영어
버전:
01/08/2021
파일 크기:
570.4 KB
파일 이름:
XA02657TEN_0121.pdf
-
