iTEMP TMT182
Temperature head transmitter

Transformation of sensor signals into stable and standardized output signals for all industries

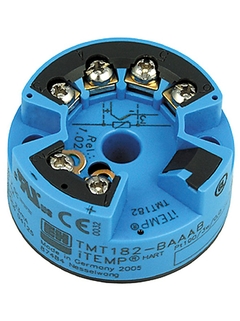

  • iTEMP TMT182
Temperature head transmitter ©Endress+Hauser

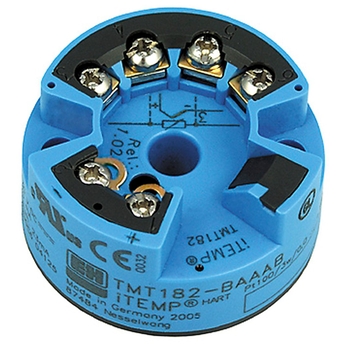

  • iTEMP TMT182
Temperature head transmitter ©Endress+Hauser

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals using HART® communication. It can be installed as an intrinsically safe apparatus in Zone 1 hazardous areas. Swift and easy operation, visualization and maintenance by PC using operating software.

장점

  • Front end unit or panel unit operation using the hand operating module or PC

  • High accuracy in total ambient temperature range

  • Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

  • EMC to NAMUR NE 21, CE

  • Ex-Certification: ATEX Ex ia and dust zone 22 in compliance with EN 50281-1; FM IS; CSA IS

  • Galvanic isolation

  • SIL 2 compliant;
    Marine approval

적용 분야

  • Temperature head transmitter with HART® -protocol for converting various input signals into an scalable 4 to 20 mA analog output signal

  • Input: Resistance thermometer (RTD), thermocouple (TC), Resistance transmitter (Ω), voltage transmitter (mV)

  • HART® -protocol for front end unit or panel unit operation using the hand operating module (DXR275, DXR375) or PC (e. g. ReadWin 2000 or FieldCare)

특징 및 사양

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

기존 제품 / 신제품

선행 제품: THT1, TMD830, TMD832, TMT2530, TMT2532
