iTEMP TMT112
DIN rail temperature transmitter

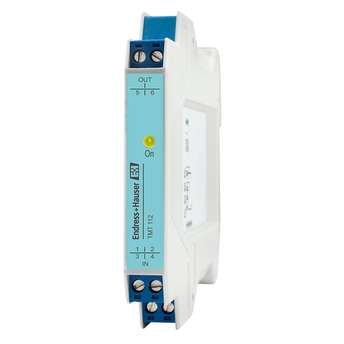

Product picture temperature transmitter TMT112 ©Endress+Hauser

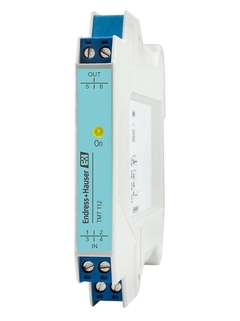

Product picture temperature transmitter TMT112 ©Endress+Hauser

Transformation of sensor signals into stable and standardized output signals for all industries.

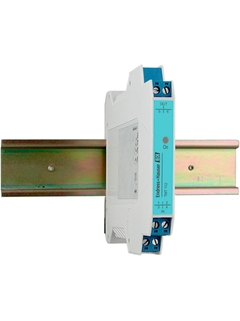

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals using HART® communication. Swift and easy operation, visualization and maintenance by PC using operating software. Space-saving DIN rail mounting according to IEC 60715 (housing width: 12.6 mm).

  • 장점

    • Universal settings with HART®-protocol

    • High accuracy in total ambient temperature range

    • Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

    • EMC to NAMUR NE 21, CE

    • Ex-Certification: ATEX Ex, CSA IS, FM IS

    • Galvanic isolation

    • SIL2 compliant

  • 적용 분야

    • Temperature transmitter with HART® -Protocol for converting various input signals into a scalable 4 to 20 mA analog output signal

    Input:

    • Resistance thermometer (RTD)

    • Thermocouple (TC)

    • Resistance transmitter (Ω)

    • Voltage transmitter (mV)

    • HART® -Protocol for...

특징 및 사양

뒤로

Details

  • 측정 원리

    Resistance Temperature Detector

  • Input

    1 x RTD, TC, Ohm, mV

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    12...35 V DC (standard-version)

    12...30 V DC (Ex-version)

  • Communication

    HART

  • Installation

    DIN rail

  • Accuracy

    (Pt100, -50...200 °C) <= 0,2 K

    (Pt100, -58...392 °F) <= 0,4 °F

  • Galvanic isolation

    yes

  • Certification

    UL rec. Com

    FM IS,NI,Class I,Div.1+2,Group ABCD

    CSA IS,NI,Class I,Div.1+2,Group ABCD

    ATEX II2(1)G EEx ia IIC T4/T5/T6

    ATEX II3G Ex nA IIC T6

    CSA General Purpose
