4-20mA 또는 HART통신용 루프파워 인디케이터
RIA15
현장 또는 패널에서 4 ~ 20 mA 신호 또는 HART® 값 표시
이 프로세스 디스플레이는 4 ~ 20 mA 또는 HART® 프로토콜을 지원합니다. HART® 버전의 경우 한 센서의 측정 값을 최대 4개까지 번갈아 표시할 수 있습니다. 이를 위해 디스플레이를 1차 또는 2차 HART® 마스터로 설정하고 센서의 값을 능동적으로 검색할 수 있습니다. 전압 강하가 1V 미만(HART®의 경우 1.9 V 미만)으로 작기 때문에 대부분의 경우 감압만 사용할 수 있는 방폭 어플리케이션에서 특히 유용합니다.
- F
- L
- E
- X
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
사양 정보
-
Input
1 x analogue 4...20 mA/HART®
-
Output
Not defined
-
Display
LCD 17 mm (0.67")
5-digit
7-segment bargraph
Plain text display for unit/TAG
Activatable backlight -
Power Supply
Loop powered
-
빠른 선택
개별 사양 구성
-
장점
모든 산업에서 4~20 mA 측정값 표시 또는 센서의 HART 프로세스 변수 중 최대 4개 표시(옵션) 1차 또는 2차 HART® 마스터로 사용
치수 및 막대 그래프와 함께 17 mm (0.67") 문자 높이로 5자리 측정값 표시; 백라이트 활성화 가능

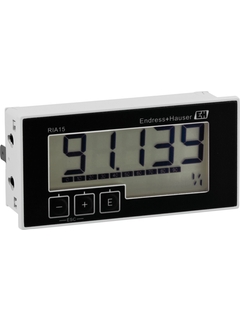

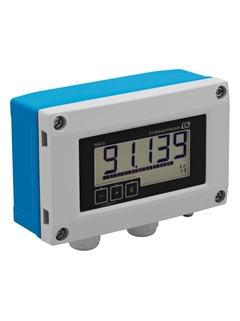

로컬 디스플레이로 패널 설치 하우징(IP65) 또는 필드 하우징(IP66; Ex 승인); 최소의 설치 깊이
외부 전원 공급 장치가 필요하지 않음; 전압 강하 ≤1 V (HART ≤1.9 V)
손쉬운 3키...
-
적용 분야
모든 산업에서 4~20 mA 측정값 또는 HART 프로세스 변수 표시
로컬 디스플레이로 패널 설치 하우징 또는 필드 하우징
확장 가능한 표시값
"레벨" 또는 "분석" 옵션을 사용해 선택한 센서에서 기본 설정을 수행하고 측정값과 단위를 쉽고 빠르게 사전 설정할 수 있습니다.
