TH15
Modular RTD thermometer, US style

TH15

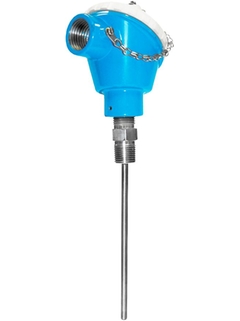

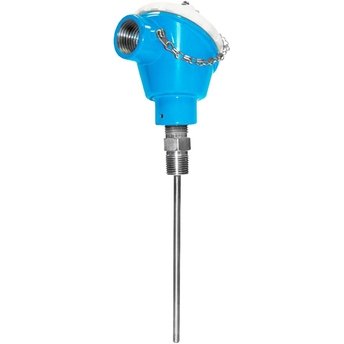

Modular RTD thermometer, US style ©Endress+Hauser

Best in class temperature measurement for general applications

The robust device is a unit ready for use within and existing thermowell and includes various housing transmitter heads to meet the application and space requirement needs. The unit offers enhanced measurement accuracy and reliability. A variety of connections, dimensions and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.

  • 장점

    • High flexibility due to modular assembly with standard terminal heads and customized immersion length

    • One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry...

  • 적용 분야

    The TH15 temperature sensors are RTD assemblies designed for use in all types of process industries, including harsh environments, due to their rugged design.
    They are made up of a measurement probe with an insulated RTD element and sheath.

    The sensor...

특징 및 사양

뒤로

Details

  • 측정 원리

    Resistance Temperature Detector

  • Characteristic / Application

    Industrial US style

    modular temperature assembly

    with extension

    to be used with existing thermowell

  • Terminal head

    TA20J - SS - w. or w/o. display

    TMT162 - aluminium - fieldhousing w. or w/o. display

    TMT162 - SS - fieldhousing w. or w/o. display

    Alu - screwed cover w. chain - E+H blue

    PP plastic - screwed cover w. chain

    TMT162/T17 - SS - hygienic field housing

    Alu - flip cover

    TA30H - aluminum w. or w/o. display

  • Thermowell / protection tube

    to be used with thermowell

  • Insert / probe

    mineral insulated (MI), flexible

    PTFE-insulated, rigid

  • Outer diameter protection tube / Insert

    Insert 1/4'' (6,35 mm)

  • Max. immersion length on request

    up to 41" (1041 mm)

    others on request

  • Material protection tube/ thermowell

    Sensor sheath

    316/316L

  • Optional coating

    Not applicable

  • Process connection

    Schutzrohranschluss

    Außen-Gewinde:

    NPT1/2"
    1-1/4"-18 UNEF

  • Tip shape

    straight

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    PT100 WW:

    -200 °C … 600 °C

    (-328 °F … 1.112 °F)

    StrongSens:

    -50 °C … 500 °C

    (-58 °F … 932 °F)

    PT100 TF:

    -50 °C … 200 °C
    (-58 °F … 392 °F)

  • Max. process pressure (static)

    class AA acc. to IEC 60751

    class A acc. to IEC 60751

    class B acc. to IEC 60751

  • Accuracy

    class A acc. to IEC 60751

    class B acc. to IEC 60751

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    transmitter only

    FM IS

    CSA IS

    FM/CSA IS

  • Certification

    SIL (transmitter only)
