수두압 레벨계
Waterpilot FMX21

Pressure measuring principle

세라믹 측정 셀이 장착되고 HART를 지원하는 내구성과 신뢰성이 우수한 레벨 프로브

정전용량식 오일 프리 세라믹 측정 셀이 장착된 Waterpilot FMX21 트랜스미터는 일반적으로 정수압 레벨 측정을 위해 프로세스 및 환경 어플리케이션에서 사용됩니다. HART 출력을 사용해 측정 범위를 자유롭게 조정하고 밀도 보상 레벨 측정을 활성화할 수 있습니다. 또한 음용수에 대한 인증을 받았고 통합 온도 측정을 지원합니다. 폐수 및 슬러지 어플리케이션이나 염수 어플리케이션용 버전도 있습니다.

장바구니에 담기
사양 구성
사이징
로그인 및 사양 구성 후의 가격

비교

추가 구성 요소

장점
견고하고 과부하에 강한 고순도 세라믹 센서(99.9% Al₂O₃)
중첩된 HART 6.0 출력을 활용하여 4mA부터 20mA까지 유연하게 규모 조정 가능
온도 보상 밀도 보정을 이용해 레벨 정확도가 매우 우수함
Pt100 온도 센서(옵션)가 통합되어 있어 레벨과 온도를 동시 측정
광범위한 액세서리로 완전한 측정 개소 솔루션 구성

완전하게 밀봉된 전자 장치와 2필터 압력 보상 시스템에 기반한 내후성 센서

외경이 22mm (0.87")인 작은 버전은 음용수...

자세히 보기
견고하고 과부하에 강한 고순도 세라믹 센서(99.9% Al₂O₃)
중첩된 HART 6.0 출력을 활용하여 4mA부터 20mA까지 유연하게 규모 조정 가능
온도 보상 밀도 보정을 이용해 레벨 정확도가 매우 우수함
Pt100 온도 센서(옵션)가 통합되어 있어 레벨과 온도를 동시 측정
광범위한 액세서리로 완전한 측정 개소 솔루션 구성

완전하게 밀봉된 전자 장치와 2필터 압력 보상 시스템에 기반한 내후성 센서

외경이 22mm (0.87")인 작은 버전은 음용수 어플리케이션과 직경이 작은 보어 홀 및 웰에 적합

간단히 보기

적용 분야
음용수, 폐수 및 하수, 염수를 위한 세 가지 버전.

프로세스 연결부: 서스펜션 클램프, 케이블 글랜드

온도: –10 ~ +70°C (14 ~ 158°F)

측정 범위: 0 ~ 20bar / 200m H₂0 (0 to 300psi / 600ft H₂O)

정확성: ±0.2%, "백금" ±0.1%

국제 방폭 인증, 해양 승인, 음용수 승인

특징 및 사양

뒤로

Details

측정 원리

Hydrostatic pressure
Characteristic

Compact probe with ceramic cell for hydrostatic level measurement,

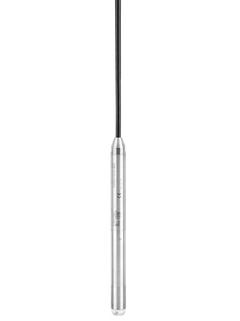

Diameter = 22 mm: General applications, fresh water

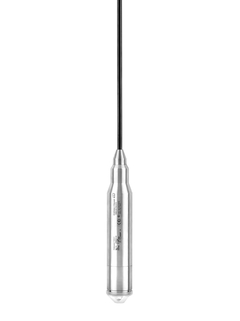

Diameter = 42 mm: Waste water applications

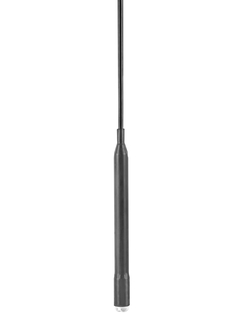

Diameter = 29 mm: Salt water applications
Supply voltage

10.5 ...35V DC
Reference Accuracy

0.2%

0.1% (optional)
Long term stability

0.1% of URL/year
Process temperature

-10°C...70°C
(14°F...158°F)
Diameter 29 mm (1.14"): 0°C...50°C
(32°F...122°F)
Ambient temperature

-10°C...70°C

(14°F...158°F)

Diameter 29 mm (1.14"):

0°C...50°C

(32°F...122°F)
Measuring cell

100mbar...20bar
(1.5psi...300psi)
Process connection

Suspension clamp

Cable mounting screws
Communication

4...20 mA

4...20 mA HART
Certificates / Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI
Marine approvals

GL/ ABS/ BV/ DNV
Drinking water approvals

NSF/ KTW/ ACS

자세히 보기
간단히 보기

측정 원리

Hydrostatic
Characteristic / Application

Compact probe with ceramic cell for hydrostatic level measurement,

Diameter = 22 mm: General applications, Fresh water

Diameter = 42 mm: Waste water applications

Diameter = 29 mm: Salt water applications
Specialities

Automatic density compensation

Version w/o metal parts in contact to process
Supply / Communication

10.5 ...35 VDC
Accuracy

0.2%

0.1% (optional)
Long term stability

0.1% of URL/year
Ambient temperature

-10°C...70°C

(14°F...158°F)

Diameter 29 mm (1.14"):

0°C...50°C

(32°F...122°F)
Process temperature

-10°C...70°C
(14°F...158°F)
Diameter 29 mm (1.14"): 0°C...50°C
(32°F...122°F)
Pressure measuring range

100 mbar...20 bar
(1.5 psi...300 psi)
Main wetted parts

Diameter 22 mm and 42 mm: Seal, 316L, Ceramic

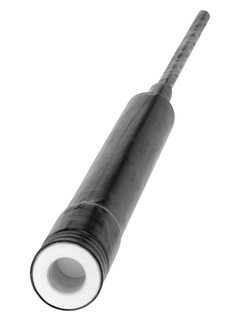

Diameter 29 mm: Seal, PPS, Polyolefin, Ceramic

Extension cable: PE, PUR, FEP
Process connection

Suspension clamp

Cable mounting screws
Max. measurement distance

200 m H2O
(656 ft H2O)
Communication

4...20 mA

4...20 mA HART
Certificates / Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI
Marine approval

GL/ ABS/ BV/ DNV
Drinking water approvals

KTW/ NSF/ ACS
Options

Absolute measuring cell

Integrated temperature sensor Pt100, 4-wire

customer specific adjustment

customer specific cable marking
Application limits

Measuring cell: ceramics
