Gauge pressure
Cerabar PMC11
Pressure measuring principle

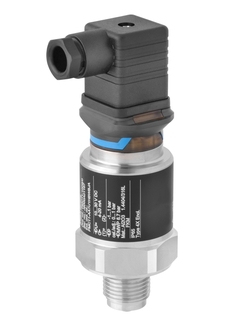

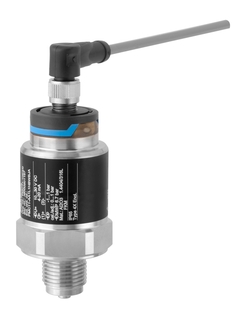

Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids
The Cerabar PMC11 is the most price-attractive compact pressure transmitter in its segment. It features a capacitive, oil-free ceramic sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMC11 is designed for standard applications in the process industry and to withstand the conditions with the use of high quality materials like 316L and 99,9% Al2O3.
- F
- L
- E
- X
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
사양 정보
-
Accuracy
0.5%
-
Process temperature
-25 °C…+85 °C
(-13 °F…+185 °F) -
Pressure measuring range
+400 mbar…+40 bar
(+6 psi...+600 psi) -
Measuring cell
+400 mbar…+40 bar
(+6 psi...+600 psi)
-
Loading alternative products
추가 구성 요소
-
장점
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges
Reference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process...
-
적용 분야
Pressure transducer with oil-free ceramic sensor to measure gauge pressure in gases or liquids.
Process connections: Threads
Process temperature: -25 to +85°C (-13 to +185°F)
Process pressure: 400mbar to +40bar (6 to 600psi)
Accuracy: ±0.5% of span
문서 / 매뉴얼 / 소프트웨어
-
Cerabar PMC11, PMC21, PMP11, PMP21
Technical Information
Pressure transducer with ceramic and metal sensors
Technical Information (TI) -
Cerabar PMC11, PMC21, PMP11, PMP21, PMP23
Operating Instructions
Pressure transducer for safe measurement and monitoring of absolute and
gauge pressureOperating Instruction (BA) -
Cerabar PMC11, PMC21, PMP11, PMP21, PMP23
Brief Operating Instructions
Pressure transducer with ceramic and metal sensors
Short Instruction (KA)05/18영어 -
Mechanical accessories for pressure measuring devices
Pressure measurement
Special Documentation (SD) -
M12 socket
Accessories for Liquipoint, Liquitrend, Liquiphant, Ceraphant, Cerabar,
Deltabar, GammapilotSpecial Documentation (SD) -
Valve plug
Valve plug
Special Documentation (SD) -
Komplettpaket Druckmesstechnik
Ein Ansprechpartner - spart Zeit und reduziert Kosten
Competence Brochure (CP)05/15독일어 -
Cerabar S, PMC11
Druckmessumformer mit abrasionsfestem Keramiksensor zur
Relativdruckmessung in
Gasen oder FlüssigkeitenTender Text12/18독일어 -
Cerabar, Cerabar M, Cerabar S, Levelflex, Micropilot, Micropilot S
Product Code: FMR56-, FMR57-, FMR60-, FMR62-, FMR67-, PMC11-, PMC21-, PMC71B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP72-, PMP75-, FMR540-, FMR54-, FMR533-, FMR532-, FMR531-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Declaration Number: HE_01158_01.19Manufacturer Declaration영어 -
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Declaration Number: HE_00360_01.16
Manufacturer Specification: RoHSManufacturer Declaration독일어 , 영어 -
Cerabar
Product Code: PMC11-
Declaration Number: HE_00560_01.17
Manufacturer Specification: RoHSManufacturer Declaration중국어 -
Cerabar
Product Code: PMC11-, PMC21-
Declaration Number: FDA_00203_02.18FDA Declaration독일어 , 영어 -
Cerabar
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-
Declaration Number: EC_00402_02.16EU Declaration독일어 , 영어 , fr -
Cerabar
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-
Declaration Number: EC_00402_03.16EU Declaration독일어 , 영어 , fr -
Waterpilot, Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant, Cerabar S, Cerabar M, Cerabar
Product Code: PTP33B-, PTP31B-, PTC31B-, PMP75-, PMP71B-, PMP71-, PMP55-, PMP51B-, PMP51-, PMP23-, PMP21-, PMP11-, PMD78B-, PMD75B-, PMD75-, PMD55B-, PMD55-, PMC71B-, PMC71-, PMC51B-, PMC51-, PMC21-, PMC11-, FMX21-, FMD78-, FMD77-, FMD72-, FMD71-, FMB70-, FMB53-, FMB52-, FMB51-, FMB50-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EAEC N RU D-DE.DE02.B.11894/20Miscellaneous러시아어 -
Cerabar, Ceraphant
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-, PTC31B-, PTP31B-, PTP33B-
Region/Country: Canada (CRN)
Approval Agency: CRNPressure Equipment영어 -
Waterpilot, SYSTEM, Gammapilot M, Gammapilot, Deltapilot S, Deltapilot M, Deltabar S, Deltabar M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
Product Code: PMC71B-, PMD55-, PMD75-, PMD75B-, PMD78B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP75-, PTC31B-, PTP31B-, PTP33B-, FMB50-, FMB53-, FMB70-, FMD71-, FMD72-, FMD77-, FMD78-, FMG60-, FMX21-, FTG20-, NMS80-, NMS83-, PMC11-, PMC21-, PMC51-, PMC51B-, PMC71-
Approval Agency: TÜVPressure Equipment독일어 , 영어 -
Cerabar, Cerabar M, Cerabar S
Product Code: PMC11-, PMC21-, PMC51-, PMC71-, PMP11-, PMP21-, PMP23-, PMP51-, PMP55-, PMP71-, PMP75-
Region/Country: Belarus
Approval Agency: BELGIM
Approval Number: 13477Metrology러시아어 -
Cerabar, Cerabar M, Cerabar S, Cerabar T, Ceraphant T
Product Code: PTP35-, PTP31-, PTC31-, PMP75-, PMP71-, PMP55-, PMP51-, PMP23-, PMP21-, PMP135-, PMP131-, PMP11-, PMC71-, PMC51-, PMC21-, PMC131-, PMC11-
Region/Country: Uzbekistan
Approval Agency: UZS
Approval Number: 02.6582Metrology러시아어 -
Cerabar, Cerabar M, Cerabar S, Cerabar T
Product Code: PMP75-, PMP71-, PMP55-, PMP51-, PMP23-, PMP21-, PMP135-, PMP131-, PMP11-, PMC71-, PMC51-, PMC21-, PMC131-, PMC11-
Region/Country: Belarus
Approval Agency: BEL
Approval Number: 9771Metrology러시아어 -
Cerabar
Product Code: PMC11-, PMC21-, PMP11-, PMP21-, PMP23-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: DE.C.30.004.A NO 67871/1Metrology러시아어 -
Cerabar, Ceraphant, Ceraphant T
Product Code: PMC11-, PMP11-, PTC31-, PTC31B-, PTP31-, PTP31B-
Region/Country: Malaysia
Approval Agency: SPAN
Approval Number: SPAN/BPI/2699-2019Metrology
액세서리 / 예비 부품
-
-
Order code 71280307
Valve Plug ISO4400 M16, 4-pole
Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.
-
Order code 71280349
Valve plug ISO4400 NPTF1/2, 4-pole
Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.
-
Order code 52006263
Socket for plug 4p-125V, 4A-M12
M12 socket for plug. Self confectionery connection. Usage: plug M12.
-
Order code 52010285
Cable 4x0.34, box M12,Cu Sn/Ni,90o,L=5m
M12 plug connector. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B.
-
-
