Absolute and
gauge pressure
Cerabar PMC131

Cost-effective pressure transducer with oil-free ceramic sensor for measurement in gases or liquids

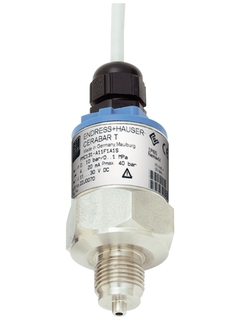

  • Cerabar PMC131 ©Endress+Hauser

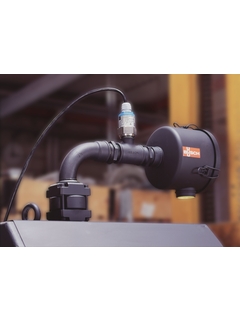

  • Cerabar PMC131 application ©Endress+Hauser
  • Pressure measuring principle

The Cerabar PMC131 is a price-attractive pressure transmitter with capacitive, oil-free ceramic sensor for absolute and gauge pressure measurement. The compact design offers the following features: Direct system without diaphragm seal, diaphragm overload/vacuum resistant and cable connection via device plug IP65.

장점

  • Compact pressure transducer

  • Dry capacitance ceramic sensor (Ceraphire)

  • Overload-resistant high purity ceramic sensor (99.9% Al2O3)

  • Best fit for vacuum applications and applications with abrasive media

적용 분야

Pressure transducer for measuring absolute pressure and gauge pressure in gases, vapors, liquids and dusts.

  • Process connections: Threads

  • Process temperature: -20 to +100°C (-4 to +212°F)

  • Pressure: -1/0 up to +40bar (-15/0 up to +600psi)

  • Accuracy: ±0.5%

  • Marine approvals

특징 및 사양

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

기존 제품 / 신제품

선행 제품: PMC131B

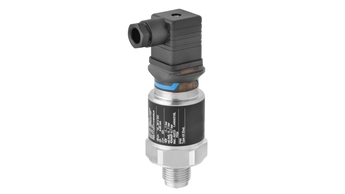

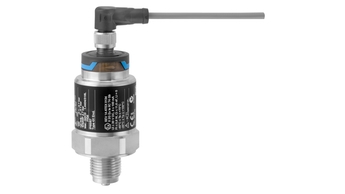

후속 제품: Cerabar PMC21, Cerabar PMC11
