사양 정보
-
Measurement range
pH: 0 to 14
-
Process temperature
Application N:
0 to 100 °C (32 to 212 °F)
Up to 140 °C (284 °F) for sterilization -
Process pressure
0.8 to 7 bar (11.6 to 101.5 psi) absolute
적용 분야

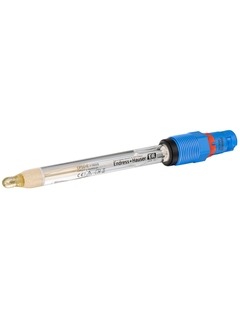

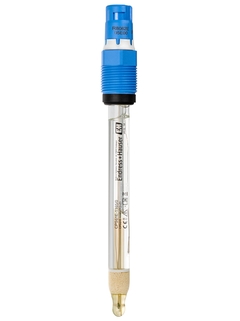

Keep the pH value in the optimum range and maximize your product yield with Memosens CPS61E. Its rugged design and long-term stability ensure extremely accurate and reproducible measured values even after CIP/SIP or autoclaving. CPS61E features Memosens 2.0 digital technology, offering extended storage of calibration and process data for predictive maintenance. The sensor resists moisture and enables lab calibration, enhancing process integrity and increasing process uptime.
Memosens CPS61E measures pH in:
Biotech and pharma industries
- Bioreactors/fermenters: process control in enzyme production
- Bioreactors/fermenters: control of culture growthFood & Beverage
- CIP/SIP applications
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
A pharma certificate of compliance with sensor serial number specified is available.
장점
Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
The sensor's exceptional accuracy and reproducibility help you to keep the pH value in the optimum range for a maximized product yield.
-
A special glass membrane and reference system makes the sensor CIP/SIP and autoclaving resistant (up to 140°C/284°F) offering maximum long-term stability.
The sensor protects your product quality with its certified biocompatibility according to USP class VI, FDA compliance of wetted parts, VO 1935/2004 compliance, no cytotoxicity, bioreactivity or animal-based materials.
Streamline maintenance of CPS61E with the Memobase Plus software that automatically stores and documents all relevant sensor and process data.
Maximum process safety through non-contact, inductive signal transmission
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
기술 정보(TI)
Memosens CPS61E
영어 버전 - 10/2021
pH sensor for bioreactors in life sciences and for the food industry
EN KO 14/10/202131/03/2021언어:
영어
버전:
14/10/2021
파일 크기:
503.9 KB
파일 이름:
TI01566CEN_0221.pdf
-
-
-
기술 정보(TI)
Memosens CPS61E
pH sensor for bioreactors in life sciences and for the food industry
EN KO 14/10/202131/03/2021언어:
영어
버전:
14/10/2021
파일 크기:
503.9 KB
파일 이름:
TI01566CEN_0221.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK Ex II 1 G Ex ia IIC T3/T4/T6 Ga
UK Ex II 1GEx ia IIC T4/T6 Ga언어:
영어
버전:
26/11/2021
파일 크기:
684.7 KB
파일 이름:
XA02588CEN_0221-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
EAC Ex 0Ex ia IIC T4/T6 Ga XEN KO 26/01/2022언어:
영어
버전:
26/01/2022
파일 크기:
424.3 KB
파일 이름:
XA02817CEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 23/04/202118/02/202103/07/2020언어:
영어
버전:
23/04/2021
파일 크기:
893.2 KB
파일 이름:
XA01991CEN_0321.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN KO 07/09/202105/08/2020언어:
영어
버전:
07/09/2021
파일 크기:
529.3 KB
파일 이름:
XA02113CEN_0221.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 22/04/202131/07/2020언어:
영어
버전:
22/04/2021
파일 크기:
505.2 KB
파일 이름:
XA02082CEN_0221.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
CSA C/US IS Cl. I Div. 1 GP A-D T3/T4/T6 + CSA C/US IS Cl. I Zone 0 AEx
ia IIC T3/T4/T6
CSA C/US IS Cl. I Div. 1 GP A-D T4/T6 + CSA C/US IS Cl. I Zone 0 AEx ia
IIC T4/T6
CSA C/ US Cl. 1 Div 1&2 GP A-D T6…T3
Safety InstructionsEN KO 01/12/202215/02/202220/08/2020언어:
영어
버전:
01/12/2022
파일 크기:
860.7 KB
파일 이름:
XA02235CEN_0422-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP 센서
pH 및 ORP 측정
BA01988C, BA02142C에 추가
방폭 지역용 전기 계기의 안전 지침서
KOR Ex ia IIC T3/T4/T6 Ga
KOR Ex ia IIC T4/T6 GaEN KO 22/10/2021언어:
한국어
버전:
22/10/2021
파일 크기:
1 MB
파일 이름:
XA02739CKO_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 22/04/202115/10/2020언어:
영어
버전:
22/04/2021
파일 크기:
491.8 KB
파일 이름:
XA02244CEN_0221.pdf
-
