1/2 채널 트랜스미터

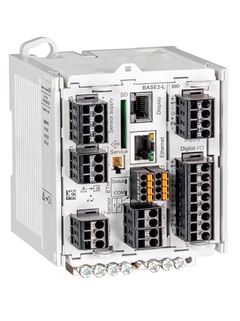

Liquiline CM442R

1/2 채널 트랜스미터
Liquiline CM442R ©Endress+Hauser

Liquiline CM442R은 설치 공간이 제한적인 경우를 포함한 모든 어플리케이션의 프로세스 모니터링과 제어를 위한 편리한 디지털 멀티파라미터 트랜스미터입니다.

간단하고 빠른 시스템 통합과 설치 및 취급으로 시간과 비용을 절약 ©Endress+Hauser

간단하고 빠른 시스템 통합과 설치 및 취급으로 시간과 비용을 절약

하트비트 기술(Heartbeat Technology)은 프로세스 최적화를 위한 진단, 검증 및 모니터링 기능을 제공합니다. ©Endress+Hauser

하트비트 기술(Heartbeat Technology)은 프로세스 최적화를 위한 진단, 검증 및 모니터링 기능을 제공합니다.

비디오를 통해 Memosens가 프로세스의 관리와 유지보수를 최적화하는 법을 확인해 보세요.

모든 산업을 위한 컴팩트한 멀티파라미터 DIN 레일 및 캐비닛 계기

Liquiline CM442R은 설치 공간이 제한적인 경우를 포함한 모든 어플리케이션의 프로세스 모니터링과 제어를 위한 편리한 디지털 멀티파라미터 트랜스미터입니다. 간단하고 빠른 시스템 통합과 설치 및 취급으로 시간과 비용을 절약할 수 있고, 1/2채널 컨트롤러는 초소형이어서 모든 캐비닛에 잘 맞습니다. Liquiline CM442R은 단순성에서 프로세스 안전성에 이르기까지 최고의 트랜스미터 플랫폼이 제공하는 모든 장점을 갖추고 있습니다.

  • 장점

    • 공간 절약, 비용 절감:
      매우 좁은 공간에도 설치 가능, 캐비닛 공간 절약 – 스키드에 최적화.

    • 신속한 설치:
      캐비닛 도어에 컷아웃 없음, 원클릭 DIN 레일 설치, 배선 최소화.

    • 간단하고 안전한 시운전:
      SD 카드에 구성을 저장해 중복 설치에서 신속한 설정이 가능합니다.

    • 간편한 작동 및 유지보수:
      직관적인 사용자 인터페이스, 사전 교정된 Memosens 센서를 통한 핫 플러그 앤 플레이 지원, 모든 파라미터에 맞는 범용 구성 요소.

    • 원격...

  • 적용 분야

    Liquiline CM442R 멀티파라미터 트랜스미터는 다음과 같은 산업과 설비를 포함해 비 방폭 지역의 모든 어플리케이션에 적합합니다.

    • 식음료

    • 생명과학

    • 발전 및 에너지

    • 상하수 처리

    • 화학

    Liquiline CM442R은 다음과 같은 모든 일반적인 통신 프로토콜과 인터페이스를 지원합니다.

    • 0/4...20 mA

    • HART

    • PROFIBUS DP

    • Modbus TCP / Modbus RS485

    • EtherNet/IP

    • Webserver

Details

  • 측정 원리

    Glass electrode

  • Application

    Modular 4 wire controller
    Multichannel: 1/2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input, 2 to 4x current output, alarmrelay
    2x relay, SD card for software update and copy & paste of setup

  • Material

    DIN rail housing: PC-FR
    Display seal: EPDM

  • Dimension

    99 x 100 x 97 mm
    3.9 x 3.94 x 3.82 inch

  • Process temperature

    0 to 60 °C (32 to 140 °F)

  • Ingres protection

    Transmitter: IP20
    Optional Display: IP66

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • 측정 원리

    Total Chlorine

  • Application

    Modular 4 wire controller
    Multichannel: 1/2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input, 2 to 4x current output, alarmrelay
    2x relay, SD card for software update and copy & paste of setup

  • Material

    DIN rail housing: PC-FR
    Display seal: EPDM

  • Dimension

    99 x 100 x 97 mm
    3.9 x 3.94 x 3.82 inch

  • Process temperature

    0 to 60 °C (32 to 140 °F)

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • 측정 원리

    Sensor ORP / Redox

  • Application

    Modular 4 wire controller
    Multichannel: 1/2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input, 2 to 4x current output, alarmrelay
    2x relay, SD card for software update and copy & paste of setup

  • Material

    DIN rail housing: PC-FR
    Display seal: EPDM

  • Dimension

    99 x 100 x 97 mm
    3.9 x 3.94 x 3.82 inch

  • Process temperature

    0 to 60 °C (32 to 140 °F)

  • Ingres protection

    Transmitter: IP20
    Optional Display: IP66

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • 측정 원리

    Ultrasonic sensor

  • Application

    Modular 4 wire controller
    Multichannel: 1/2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input, 2 to 4x current output, alarmrelay
    2x relay, SD card for software update and copy & paste of setup

  • Material

    DIN rail housing: PC-FR
    Display seal: EPDM

  • Dimension

    99 x 100 x 97 mm
    3.9 x 3.94 x 3.82 inch

  • Process temperature

    0 to 60 °C (32 to 140 °F)

  • Ingres protection

    Transmitter: IP20
    Optional Display: IP66

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • 측정 원리

    Single beam scattered light

  • Application

    Modular 4 wire controller
    Multichannel: 1/2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input, 2 to 4x current output, alarmrelay
    2x relay, SD card for software update and copy & paste of setup

  • Material

    DIN rail housing: PC-FR
    Display seal: EPDM

  • Dimension

    99 x 100 x 97 mm
    3.9 x 3.94 x 3.82 inch

  • Process temperature

    0 to 60 °C (32 to 140 °F)

  • Ingres protection

    Transmitter: IP20
    Optional Display: IP66

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • 측정 원리

    Sensor Oxygen

  • Application

    Modular 4 wire controller
    Multichannel: 1/2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input, 2 to 4x current output, alarmrelay
    2x relay, SD card for software update and copy & paste of setup

  • Material

    DIN rail housing: PC-FR
    Display seal: EPDM

  • Dimension

    99 x 100 x 97 mm
    3.9 x 3.94 x 3.82 inch

  • Process temperature

    0 to 60 °C (32 to 140 °F)

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus

  • 측정 원리

    Glass electrode

  • Application

    Modular 4 wire controller
    Multichannel: 1/2 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    Two sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    2x Memosens input, 2 to 4x current output, alarmrelay
    2x relay, SD card for software update and copy & paste of setup

  • Material

    DIN rail housing: PC-FR
    Display seal: EPDM

  • Dimension

    99 x 100 x 97 mm
    3.9 x 3.94 x 3.82 inch

  • Process temperature

    0 to 60 °C (32 to 140 °F)

  • Ingres protection

    Transmitter: IP20
    Optional Display: IP66

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Additional certifications

    EAC, cCSAus
