Temperature curves of CPY20 pH buffers are pre-programmed in all Liquiline series transmitters to simplify sensor calibration and adjustment, reducing your maintenance effort.
The CPY20 pH buffers are available in 2 quality levels.

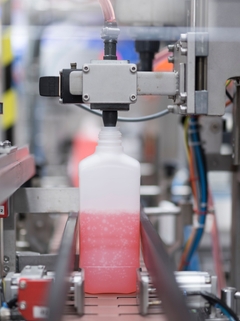

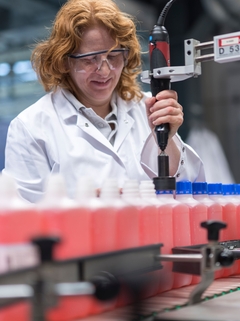

Certified reference pH buffer solutions: pH values 4, 7, 10. The buffers are produced and bottled in the accredited production area; characterized and checked for homogeneity and stability from bottling to transport and storage in our accredited calibration laboratory according to DIN EN ISO 17025 and DIN EN ISO 17034 regulations. Metrological traceability with an expanded uncertainty of 0.03 pH for pH 4 and 7 and 0.08 pH for pH 10.
Technical pH buffer solutions: pH values 2, 4, 7, 9, 9.2, 10, 12. The buffers are characterized with a typical measurement uncertainty of +/-0.02 pH (> pH 10: +/- 0.05 pH).
CPY20 pH buffer solutions are optimized for all routine and high precision sensor calibrations and adjustments with:
Memobase Plus and Memobase Pro softwares
All transmitters of the Liquiline series
All conventional pH transmitters on the market
장점
All preservatives used in the buffers are FDA-listed for highest product safety in FDA-supervised processes.
The high accuracy and reproducibility of the buffers help you optimize the pH value in your process and maximize the yield and quality of your product.
All offered pH buffers are very robust to meet your high process demands. The certified reference buffer solutions (certified reference material (CRM)) additionally fulfill all requirements of regulated industries.
Temperature curves of CPY20 pH buffers are pre-programmed in all Liquiline series transmitters to simplify sensor calibration and adjustment, reducing your maintenance effort.
The easily accessible certificates of all CPY20 pH buffers simplify your audit trails and improve the reliability of your SOPs.
Detailed, individual buffer analysis certificates for CRM buffer solutions and factory calibration certificates for technical buffers are available in the Device Viewer. Enter your serial number and click the "Search" button.
Endress+Hauser enables fast and reliable water analysis at Butoniga Reservoir, ensuring optimal layer selection, improved water quality and reduced operating costs.
Liquiline Mobile CML18 enables fast, flexible pH, conductivity, and oxygen measurement - ensuring stable processes, energy savings, and digital documentation via app.
The disinfection panel offers Maisel Brewery a stable, low-maintenance and reliable disinfection measurement system that enables optimal dosing and saves costs.
Certified reference pH buffer solution with pH values of 4, 7 and 10 (feature 30/option C) Technical pH buffer solution with pH values of 2, 4, 7, 9, 9.2, 10 and 12 (feature 30/option D)
Characteristic
Certified reference pH buffer solution: Measurement uncertainty with metrological traceability at pH 4 and pH 7 = 0.03 pH units and at pH 10 = 0.08 pH units Technical pH buffer solution: Measurement uncertainty 0.02 pH units according to GUM. pH buffer greater than 10: Measurement uncertainty 0.05 pH units according to GUM (without metrological traceability)
