사양 정보
-
Measurement range
Application B:
• pH: 0 to 14
Application H:
• pH: 0 to 12 -
Process temperature
1 to 140 °C (32 to 284 °F)
-
Process pressure
0,8 to 14 bar (11,6 to 203 psi) (absolute)
적용 분야

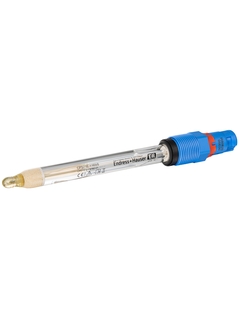

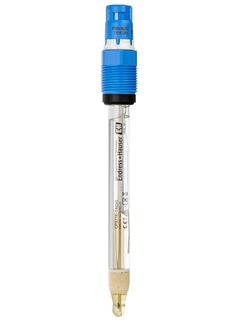

Memosens CPS71E is specially designed for demanding processes. Its unique, contamination-resistant reference and its resistance to moisture ensure reliable measurement even in heavily polluted, aggressive media such as strong acids and bases. Thanks to Memosens 2.0 digital technology, CPS71E offers extended storage of calibration and process data providing the perfect basis for predictive maintenance. Pre-calibration in the lab and quick sensor exchange on site maximize process uptime.
Processes in chemical industry and monitoring of processes with:
High proportion of electrode poisons such as H2S
Quickly changing pH values
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
장점
-
The electrode's unique ion trap prevents poisoning of the junction and reference, making it resistant to strong acids and bases and ensuring a long sensor lifetime.
-
The optional pressurized reference allows for reliable measurement in blocking media such as dispersions.
Flexible installation thanks to optional upside-down mounting
-
Inductive cable connection and non-contact signal transmission eliminate any problems due to moisture or corrosion and increase process integrity.
Fast sensor exchange on site reduces process downtime and operating costs.
Memosens 2.0 digital technology makes trend identification and predictive maintenance possible thanks to its extended storage of calibration and process data. The technology paves the way for advanced IIoT services.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
기술 정보(TI)
Memosens CPS71E
영어 버전 - 03/2021
pH sensor for chemical process applications
EN KO 19/03/2021언어:
영어
버전:
19/03/2021
파일 크기:
868.7 KB
파일 이름:
TI01496CEN_0221.pdf
-
-
-
기술 정보(TI)
Memosens CPS71E
pH sensor for chemical process applications
EN KO 19/03/2021언어:
영어
버전:
19/03/2021
파일 크기:
868.7 KB
파일 이름:
TI01496CEN_0221.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK Ex II 1 G Ex ia IIC T3/T4/T6 Ga
UK Ex II 1GEx ia IIC T4/T6 Ga언어:
영어
버전:
26/11/2021
파일 크기:
684.7 KB
파일 이름:
XA02588CEN_0221-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
EAC Ex 0Ex ia IIC T4/T6 Ga XEN KO 26/01/2022언어:
영어
버전:
26/01/2022
파일 크기:
424.3 KB
파일 이름:
XA02817CEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 23/04/202118/02/202103/07/2020언어:
영어
버전:
23/04/2021
파일 크기:
893.2 KB
파일 이름:
XA01991CEN_0321.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN KO 07/09/202105/08/2020언어:
영어
버전:
07/09/2021
파일 크기:
529.3 KB
파일 이름:
XA02113CEN_0221.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 22/04/202131/07/2020언어:
영어
버전:
22/04/2021
파일 크기:
505.2 KB
파일 이름:
XA02082CEN_0221.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
CSA C/US IS Cl. I Div. 1 GP A-D T3/T4/T6 + CSA C/US IS Cl. I Zone 0 AEx
ia IIC T3/T4/T6
CSA C/US IS Cl. I Div. 1 GP A-D T4/T6 + CSA C/US IS Cl. I Zone 0 AEx ia
IIC T4/T6
CSA C/ US Cl. 1 Div 1&2 GP A-D T6…T3
Safety InstructionsEN KO 01/12/202215/02/202220/08/2020언어:
영어
버전:
01/12/2022
파일 크기:
860.7 KB
파일 이름:
XA02235CEN_0422-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP 센서
pH 및 ORP 측정
BA01988C, BA02142C에 추가
방폭 지역용 전기 계기의 안전 지침서
KOR Ex ia IIC T3/T4/T6 Ga
KOR Ex ia IIC T4/T6 GaEN KO 22/10/2021언어:
한국어
버전:
22/10/2021
파일 크기:
1 MB
파일 이름:
XA02739CKO_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 22/04/202115/10/2020언어:
영어
버전:
22/04/2021
파일 크기:
491.8 KB
파일 이름:
XA02244CEN_0221.pdf
-
