1 채널 트랜스미터
Liquiline M CM42

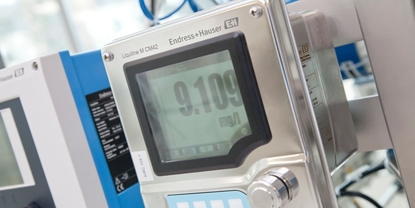

1 채널 트랜스미터 Liquiline M CM42 ©Endress+Hauser

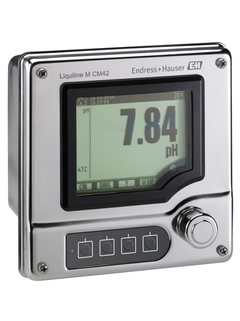

1 채널 트랜스미터 Liquiline M CM42 ©Endress+Hauser

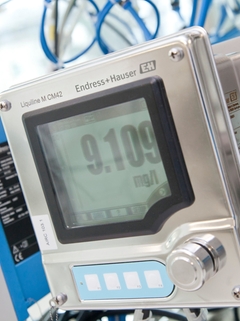

1 채널 트랜스미터 Liquiline M CM42 ©Endress+Hauser

비디오를 통해 Memosens가 프로세스의 관리와 유지보수를 최적화하는 법을 확인해 보세요.

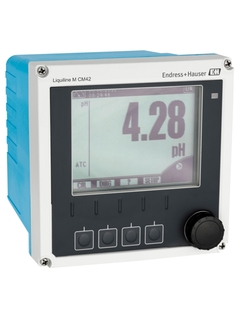

  • 1 채널 트랜스미터 Liquiline M CM42
  • 1 채널 트랜스미터 Liquiline M CM42
  • 1 채널 트랜스미터 Liquiline M CM42

방폭 및 비 방폭 지역과 화학, 생명과학 및 식품 산업을 위한 2선식 현장 계기

Liquiline M CM42는 모든 프로세스 어플리케이션에서 pH/ORP, 전도도 또는 산소 측정을 위한 견고한 트랜스미터로, 위생 어플리케이션, 방폭 지역, 기능 안전 지역 등 까다로운 환경을 위한 최고의 선택입니다. Liquiline은 직관적인 작동 방식으로 시운전, 취급 및 유지보수를 간소화해 시간을 절약할 수 있습니다. 손쉬운 파라미터 전환과 시스템 통합으로 측정 작업에 따라 간편하게 조정할 수 있습니다.

추가 구성 요소

  • 장점

    • 신속한 설정과 내비게이터를 통한 간단한 시운전

    • Memosens 기술을 탑재하여 사전 교정된 Memosens 센서를 통해 플러그 앤 플레이 지원

    • 모듈식 설계로 필요한 보관 공간 감소

    • 센서의 세척, 교정 및 교체를 안내해주는 예측 유지보수 시스템

  • 적용 분야

    Liquiline CM42 트랜스미터는 다음과 같은 산업과 설비를 포함한 모든 프로세스 어플리케이션에 적합합니다.

    • 화학

    • 식음료

    • 생명과학

    • 발전 및 에너지

    • 오일 및 가스

    • 철강 및 기초자재

    Liquiline CM42는 다음과 같은 프로토콜과 인터페이스를 지원합니다.

    • 0/4...20 mA

    • HART

    • PROFIBUS PA

    • FOUNDATION Fieldbus

    이 트랜스미터는 IECEx, ATEX, FM, CSA, TIIS, NEPSI 등 국제 방폭 승인을 획득해...

특징 및 사양

뒤로

Details

  • 측정 원리

    Glass electrode

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch
    Stainless Steel:

    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Temperature sensor

    Applicable:
    Pt100, Pt1000, NTC 30K

  • Ex certification

    ATEX, FM, CSA, NEPSI, TIIS, EAS

  • Ingres protection

    IP66, IP67 or NEMA 4X

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus PA, FF
    Additional second output possible, also later

  • 측정 원리

    Sensor ORP / Redox

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch
    Stainless Steel:
    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Temperature sensor

    Applicable:
    Pt100, Pt1000, NTC 30K

  • Ex certification

    ATEX, FM, CSA, NEPSI, TIIS

  • Ingres protection

    IP66, IP67 or NEMA 4X

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus, FF
    Additional second output possible, also later

  • 측정 원리

    Sensor Oxygen

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch
    Stainless Steel:
    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus PA, FF
    Additional second output possible, also later

  • 측정 원리

    Glass electrode

  • Application

    Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

  • Characteristic

    Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

  • Measuring principle

    Connection of analog or digital Memosens sensors

  • Design

    Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
    Liquiline is developed acc. to the international safety standard IEC 61508

  • Material

    Plastic or stainless steel housing with EPDM sealings

  • Dimension

    Plastic housing:
    144 x 144 x 148 mm
    5.67 x 5.67 x 5.83 inch
    Stainless Steel:
    174 x 174 x 134 mm
    6.85 x 6.85 x 5.28 inch

  • Temperature sensor

    Applicable:
    Pt100, Pt1000

  • Ex certification

    ATEX, FM, CSA, NEPSI, TIIS

  • Ingres protection

    IP66 and IP67

  • Input

    One or two channel transmitter (with one reference connection)

  • Output

    1/2 x 4 to 20 mA, HART, Profibus PA, FF
    Additional second output possible, also later
