사양 정보
Accuracy
class 2 acc. to IEC 60584
Max. process pressure (static)
Operating temperature range
Type S: 0 °C ...1.600 °C (32 °F ...2.912 °F) Type R: 0 °C ...1.600 °C (32 °F ...2.912 °F) Type B: 600 °C ...1.700 °C (1.112 °F ...3.092 °F)
Max. immersion length on request
up to 3.500,00 mm (137,80'')
적용 분야
Measuring points with extremely high process temperatures require these special thermometers with ceramic thermowells and thermocouples made from special metals, such as platinum and rhodium. The thermowell and the internal sheath made from ceramic materials protects from mechanical and chemical damages in the process and increases the life span of the sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.

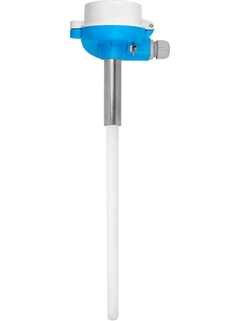

The TAF12D are assemblies with double ceramic protection tubes, designed specifically for applications such as ceramic baking ovens, brickworks, porcelain production and glass industries. They contain a single or double TC insert in ceramic insulators.
Process temperatures: up to +1700 °C (+3092 °F)
장점
Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance
Long term stable measurement due to sensor protection with non-porous materials
Flexible product selection by modular design
Optimized life cycle costs by means of replaceable spare parts
©Endress+Hauser
FLEX 선택
기술적 우수성
단순성
Fundamental 선택
기본적인 측정 요구사항 충족
기술적 우수성
단순성
기술적 우수성
단순성
Extended 선택
혁신적인 기술로 프로세스 최적화
기술적 우수성
단순성
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
기술적 우수성
단순성
Loading alternative products
Characteristic / Application
metric style modular temperature assembly high temperature probe (furnace) incl. double ceramic thermowell
Thermowell / protection tube
ceramic protection tube and inner tube
Outer diameter protection tube / Insert
14,0 mm (0,55") 15,0 mm (0,59")
Max. immersion length on request
up to 3.500,00 mm (137,80'')
Material protection tube/ thermowell
Process connection
compression fitting: G3/4" G1" G11/2" adjustable Flange
Operating temperature range
Type S: 0 °C ...1.600 °C (32 °F ...2.912 °F) Type R: 0 °C ...1.600 °C (32 °F ...2.912 °F) Type B: 600 °C ...1.700 °C (1.112 °F ...3.092 °F)
Max. process pressure (static)
Accuracy
class 2 acc. to IEC 60584
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
최다 다운로드
High temperature thermometers TAF11, TAF12x
Unwrapping the safety seal for flanged ceramic thermometers
언어:
영어
버전:
20/01/2020
파일 크기:
125 KB
파일 이름:
EA01291TA2_0120.pdf
15 설명서
Omnigrad S TAF11, TAF12x, TAF16
Technical information
High temperature assemblies With metal or ceramic thermowells Adjustable process connection Thermocouple sensor types J, K, N, R, S, B
EN
KO
독일어 스페인어 French 크로아티아어 이탈리아어 일본어 폴란드어 포르투갈어 러시아어 중국어
12/11/2013
25/01/2012
16/06/2011
01/09/2004
언어:
영어
버전:
12/11/2013
파일 크기:
543.4 KB
파일 이름:
TI00251ten_1413.pdf
High temperature thermometers TAF11, TAF12x
Unwrapping the safety seal for flanged ceramic thermometers
EN
KO
독일어 French 중국어
20/01/2020
언어:
영어
버전:
20/01/2020
파일 크기:
125 KB
파일 이름:
EA01291TA2_0120.pdf
Technical documentation in other languages
언어:
영어
버전:
14/07/2021
파일 크기:
478.5 KB
파일 이름:
SD02429R09EN_0121.pdf
Thermometer und Transmitter für die Prozessindustrie
언어:
독일어
버전:
17/05/2023
파일 크기:
17.9 MB
파일 이름:
FA00006Tde_2223_online.pdf
Thermometers and transmitters for the process industry
언어:
영어
버전:
17/05/2023
파일 크기:
18 MB
파일 이름:
FA00006Ten_2223_online.pdf
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
언어:
스페인어
버전:
20/04/2018
파일 크기:
5.5 MB
파일 이름:
FA00006Tes_Catalogo Temperatura_1818.pdf
Termometri e trasmettitori per l'industria di processo
언어:
이탈리아어
버전:
17/02/2020
파일 크기:
30.6 MB
파일 이름:
FA00006TIT_2020.pdf
언어:
일본어
버전:
17/02/2020
파일 크기:
38.9 MB
파일 이름:
FA00006TJA_2020.pdf
Capteurs et transmetteurs de température pour les industries de process
언어:
French
버전:
20/12/2019
파일 크기:
60.9 MB
파일 이름:
FA00006TFR-Mesure de temperature.pdf
Trait d'union 56 - Edition Process
Le Journal d'Information Endress+Hauser France
언어:
French
버전:
21/06/2013
파일 크기:
1.2 MB
파일 이름:
EH_TU56_Process_VBD.pdf
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Spare parts kit sealing TA30A/TA30D
Fixing kit cpl.TMT8x/7x (european)
iTEMP TMT84, Transmitter PA
iTEMP TMT85, Transmitter FF
Readwin 2000 Operation + Read. software
iTEMP TMT71, Transmitter 4-20mA
iTEMP TMT72, Transmitter HART
iTEMP TMT82, Transmitter HART
Stop Flange adjustable,DIN EN 50446,23mm
Compression fitting G 3/4" 22,5mm
Compression fitting G1 1/2", 22.5mm
Compression fitting G 1", 22,5mm
