사양 정보
-
Measurement range
0.01 to 100 mg/l
0.00 to 1000 %SAT
0 to 2000 hPa -
Process temperature
-5 to 60 °C
(20 to 140 °F) -
Process pressure
Max. 5 bar abs
(Max. 72.5 psi abs)
적용 분야

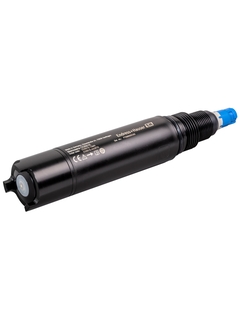

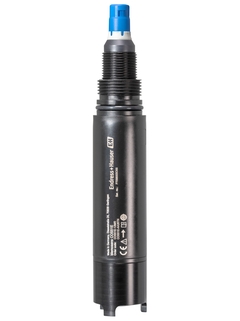

Memosens COS51E is perfectly suited for all wastewater and utility applications including hazardous areas. The sensor is highly accurate and moisture-resistant ensuring the safety of your processes. COS51E features Memosens 2.0 digital technology. It is able to store more calibration and process data and thus provides the perfect basis for predictive maintenance and IIoT services. Designed to be low-maintenance with a long operating life, the sensor offers outstanding value for money.
Memosens COS51E measures the dissolved oxygen concentration in:
Wastewater treatment plants:
- O2 control in the aeration basin
- Process water treatment and monitoringUtilities of all industries:
- O2 control in the biological treatment
- Process water treatment and monitoringWater works:
- Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)
- Water quality monitoring in rivers, lakes or seas
The sensor is suitable for hazardous area use (ATEX, FM, CSA).
장점
Wide measuring range: The amperometric measuring principle and cathode design make the sensor suitable for all wastewater applications from industrial to municipal plants.
High accuracy: Thanks to its amperometric, three-electrode design, the sensor provides long-term stable measurement with low drift.
Increased plant availability: Memosens technology and Liquiline transmitters enable plug & play for fast commissioning and sensor exchange.
Non-contact, inductive signal transmission ensures maximum process integrity.
Memosens 2.0 digital technology makes the sensor ready for predictive maintenance and IIoT services since it offers extended storage of calibration and process data.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
기술 정보(TI)
Memosens COS51E
영어 버전 - 02/2022
Amperometric oxygen sensor for water, wastewater and utilities
EN KO 08/02/202207/10/2021언어:
영어
버전:
08/02/2022
파일 크기:
1.3 MB
파일 이름:
TI01620CEN_0222-00.pdf
-
-
-
요약 지침서(KA)
Memosens COS51E
한국어 버전 - 10/2021
Memosens 2.0 기술이 적용된 전류 측정식 산소 센서
EN KO 07/10/2021언어:
한국어
버전:
07/10/2021
파일 크기:
1.2 MB
파일 이름:
KA01542CKO_0121.pdf
-
-
-
기술 정보(TI)
Memosens COS51E
Amperometric oxygen sensor for water, wastewater and utilities
EN KO 08/02/202207/10/2021언어:
영어
버전:
08/02/2022
파일 크기:
1.3 MB
파일 이름:
TI01620CEN_0222-00.pdf
-
-
-
사용 설명서(BA)
Memosens COS51E
Amperometric oxygen sensor with Memosens 2.0 technology
EN KO 08/02/202207/10/2021언어:
영어
버전:
08/02/2022
파일 크기:
1.7 MB
파일 이름:
BA02146CEN_0222-00.pdf
-
-
-
요약 지침서(KA)
Memosens COS51E
Memosens 2.0 기술이 적용된 전류 측정식 산소 센서
EN KO 07/10/2021언어:
한국어
버전:
07/10/2021
파일 크기:
1.2 MB
파일 이름:
KA01542CKO_0121.pdf
-
-
-
설치 설명서(EA)
EA Kit COS41/COS51D/E
for maintenance of the Oxymax W COS41/COS51D and Memosens COS51E oxygen
sensorsEN KO 05/05/2023언어:
영어
버전:
05/05/2023
파일 크기:
636.5 KB
파일 이름:
EA01476CEN_0123-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
Supplement to BA02145C
Supplement to BA02146C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 17/11/2021언어:
영어
버전:
17/11/2021
파일 크기:
504.9 KB
파일 이름:
XA02752CEN_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
KOR Ex ia IIC T6… T4 Ga
방폭 지역용 전기 계기의 안전 지침서EN KO 18/03/2022언어:
한국어
버전:
18/03/2022
파일 크기:
1 MB
파일 이름:
XA02791CKO_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
EAC Ex 0Ex ia IIC T6 … T4 Ga X
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 11/05/2022언어:
영어
버전:
11/05/2022
파일 크기:
420.1 KB
파일 이름:
XA02840CEN_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens oxygen sensors
NEPSI Ex ia IIC T6/ T4 Ga
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 15/03/2023언어:
영어
버전:
15/03/2023
파일 크기:
591.3 KB
파일 이름:
XA03110CEN_0123-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens oxygen sensors
IS Class I Div 1 Groups A, B, C, D
Ex ia IIC T6... T4 Ga
Class I Zone 0 AEx ia IIC T6... T4 Ga
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 12/01/2023언어:
영어
버전:
12/01/2023
파일 크기:
499.7 KB
파일 이름:
XA03088CEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
Supplement to BA02145C
Supplement to BA02146C
Safety instructions for electrical equipment in explosion-hazardous
areasEN KO 29/11/202105/07/2021언어:
영어
버전:
29/11/2021
파일 크기:
1.3 MB
파일 이름:
XA02621CEN_0221-00.pdf
-
