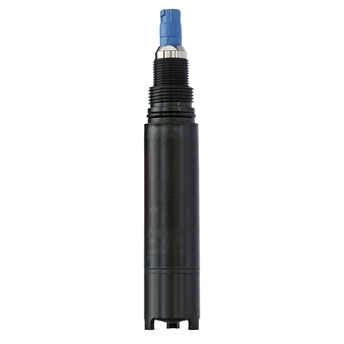

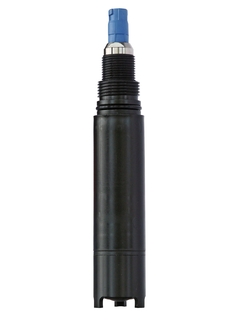

디지털 용존산소 센서
Oxymax COS51D

비디오를 통해 전류 측정 산소 및 광학 산소 측정 원리를 확인해 보십시오.

비디오를 통해 Memosens 기술의 프로세스 관리 및 유지보수 최적화를 확인해 보시기 바랍니다.

용수, 폐수 및 설비용 Memosens 전류 측정 산소 센서

Oxymax COS51D는 모든 종류의 상하수 처리 어플리케이션(방폭 지역 포함)을 위한 정확하고 신뢰할 수 있는 산소 센서로, 유지보수가 간편하고 작동 수명이 길어 가성비가 뛰어납니다. Oxymax COS51D는 Memosens 디지털 기술을 탑재하여 프로세스 및 데이터 무결성을 극대화하고 작동이 간편할 뿐만 아니라 내부식성과 내습성이 우수해 실험실 교정과 예측 유지보수가 용이합니다.

사이징
로그인 및 사양 구성 후의 가격

비교

빠른 선택

제안된 옵션 중에서 선택하십시오.

<%label%>
-- selected coding

-- selected label
<%label%>
더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

선택적 추가 항목

계속하려면 개별 사양 구성 을 사용하십시오.

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.

추가 구성 요소

1 채널 트랜스미터
Liquiline M CM42

방폭 및 비 방폭 지역과 화학, 생명과학 및 식품 산업을 위한 2선식 현장 계기
추가 정보
비교
1/2 채널 트랜스미터
Liquiline CM442

모든 산업을 위한 확장형 멀티파라미터 현장 계기
추가 정보
비교
1/2 채널 트랜스미터
Liquiline CM442R

모든 산업을 위한 컴팩트한 멀티파라미터 DIN 레일 및 캐비닛 계기
추가 정보
비교
Zero-point gel
COY8

Ready-to-use gel for validation, calibration, and adjustment of oxygen and disinfection sensors
추가 정보
비교
1 채널 트랜스미터
Liquiline Compact CM82

모든 산업의 방폭 및 비 방폭 어플리케이션을 위한 멀티파라미터 현장 계기
추가 정보
비교

장점
최대의 측정 정확도
센서 부하 데이터의 로깅으로 추적이 용이
지능형 자가 모니터링 센서
간단한 공기 교정으로 교정 작업 최소화
긴 유지보수 주기
방폭 지역 사용 승인 획득

적용 분야
Oxymax COS51D는 다음과 같은 어플리케이션에서 용존 산소 농도를 측정합니다.

폐수 처리 플랜트:
- 폭기조의 O₂ 제어
- 프로세스 용수 처리 및 모니터링

용수 처리:
- 음용수 상태 모니터링(산소 부화, 부식 방지 등)
- 강, 호수 또는 바다의 수질 모니터링

모든 산업 설비:
- 생물학적 처리의 O₂ 제어
- 프로세스 용수 처리 및 모니터링

이 센서는 방폭 지역에서의 사용에 적합합니다(ATEX, FM, CSA).

특징 및 사양

뒤로

Details

측정 원리

Sensor Oxygen
Application

Aeration tank, river monitoring, water treatment, fish farming, sewage treatment plants
Characteristic

Amperometric 3-electrode longterm-stable sensor to measure dissolved oxygen
Measurement range

0.01 to 100 mg/l
0.00 to 1000 %SAT
0 to 2000 hPa
Measuring principle

Closed membrane covered amperometric 3-electrode system
Design

Digital signal transmission
Calibration datas stored in the sensor
Material

Sensor body: POM
Membrane cap: POM
Dimension

Diameter: 40mm (1.57 inch)
Shaft length: 144 mm (5.67 inch)
Process temperature

-5 to 50 °C
(20 to 120 °F)
Process pressure

max. 10 bar
(max. 145 psi)
Connection

Memosens connector
Process: G1, NPT 3/4"
