Oxymax W COS31

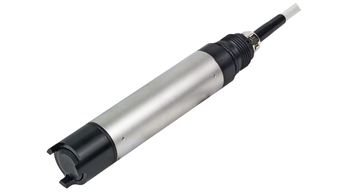

Product picture of: Oxymax W COS31

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Sensor Oxygen

  • Application

    Aeration tank, river monitoring, water treatment, fish farming.

  • Characteristic

    Amperometric 3-electrode sensor to measure dissolved oxygen.

  • Measurement range

    0mg/l ... 60mg/l

  • Measuring principle

    Closed membrane covered amperometric 3-electrode system.

  • Design

    - automatic adjustment for digitale or analoge communication depending on the transmitter.- Storage of the calibration datas in the sensor.- Extreme stable membrane.

  • Material

    Sensor body : stainless steel 1.4571Membrane cap : POM

  • Dimension

    Diameter : 40mm
    (1.56inch)Length : 220mm
    (8.58inch)

  • Process temperature

    max. 50°C
    (max.122°F)

  • Process pressure

    max. 10bar
    (max.145psi)

  • Temperature sensor

    Integrated NTC-Sensor.

  • Connection

    - Fixed cable or TOP68.- Process : G1"
