총인 분석계
Liquiline System CA80TP

Colorimetric

Analyzer for total phosphorus

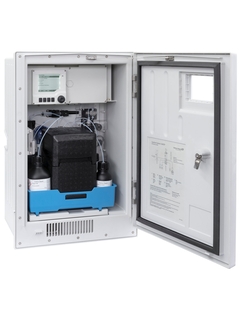

Housing (open version):
793 x 530 x 417 mm
31.22 x 20.87 x 16.42 in

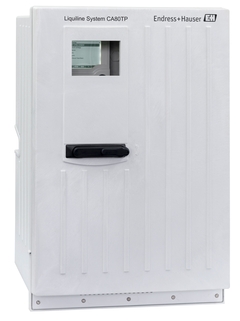

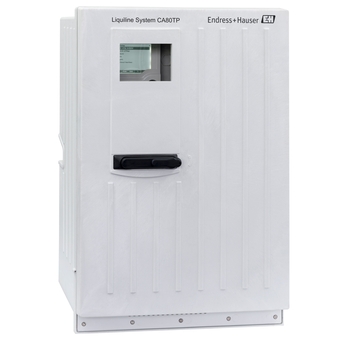

Housing (closed version):
793 x 530 x 463 mm
31.22 x 20.87 x 18.23 in
Housing with base:
1723 x 530 x 463 mm
67.83 x 20.87 x 18.23 in

Open design, cabinet and stand housing
High-Performance plastic ASA-PC, additional stand coated steel

4 to 40 °C (39.2 to 104 °F)

5 to 40 °C (41 to 104 °F)
Outdoor version: - 20 to 40 °C (-4 to 104 °F)

At atmospheric pressure, < 0.2 bar

Min. 30 ml/min

Low solid content (TS<50 mg/l), homogeneous

Easy upgrade to measuring station with up to four digital Memosens sensors
Automatic calibration and cleaning
User-configurable measuring, cleaning and calibration intervals
Self-priming analyzer with optical dosing unit l
Dilution module (optional)
Digital communication for remote access

Monitoring and optimization of the cleaning capacity of municipal and industrial wastewater treatment plants
Monitoring of the wastewater treatment plant outlet for documentation purposes
Monitoring and optimization of activated sludge basins

100 to 120 VAC / 200 to 240 VAC ± 10%
24 VDC ± 10%
50 ± 1 or 60 ± 1,2 Hz

2x 0/4 to 20 mA
Webserver, Modbus, Ethernet/IP, Profibus DP

1 measuring channel
1 to 4 digitale sensor inputs for sensors with Memosens protocol (optional)

0 to 2 mg/l
0.05 to 10 mg/l
0.5 to 50 mg/l

Reagents and standard solutions CY80TP are necessary for the operation
