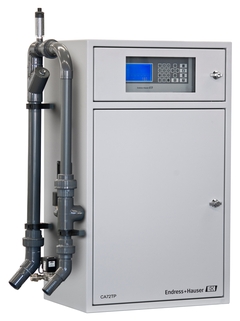

SPECTRON TP CA72TP

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Colorimetric

  • Characteristic

    Analyzer for total phosphorus

  • Size

    990 x 825 x 400 mm
    39.0 x 32.5 x 15.8 inch

  • Design

    Aluminum, powder-coded

  • Process temperature

    5°C ... 40°C
    41°F ... 104°F

  • Ambient temperature

    0°C ... 40°C
    32°F ... 104°F

  • Process pressure

    unpressurized < 0.2 bar
    < 2.9 psi

  • Sample flow rate

    5 ... 12ml/min
    0.17 to 0.4 fl.oz./min

  • Consistency of the sample

    low level of solids, particle size <500 µm

  • Specials

    automatic two-point calibration
    Diode array spectrometer
    chemical and thermal digestion

  • Application

    monitoring: sewage treatment plant outlet, process water, surface water, cooling water

  • Power supply

    230 VAC 50/60 Hz
    115 VAC 50/60 Hz

  • Output

    0/4 ... 20 mA, galvanically isolated

  • Input

    Total phosphorus (mg/l)

  • Measurement range

    0.05 ...2 mg/l
    0.1 ... 5 mg/l
    0.3 ... 8 mg/l
    0.5 ...25 mg/l

  • Consumables

    Reagents

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification

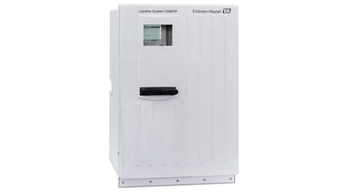

  • 신제품
