정전용량식 포인트 레벨 스위치
Liquicap FTI51

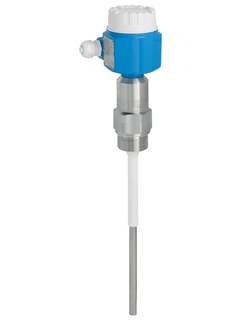

Liquicap FTI51 aluminium housing ©Endress+Hauser

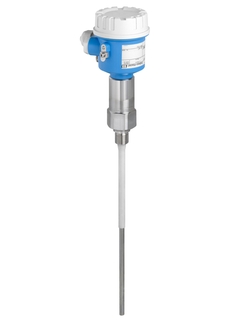

Liquicap FTI51 plastic housing ©Endress+Hauser

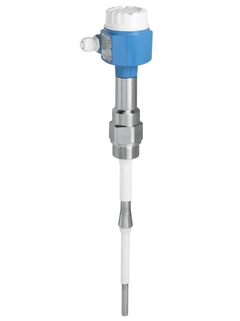

Liquicap FTI51 build-up compensation ©Endress+Hauser

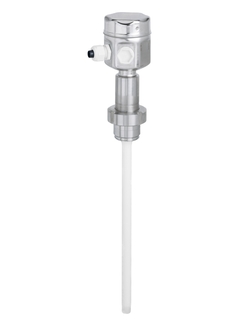

Liquicap FTI51 hygienic housing ©Endress+Hauser

Capacitance point level detection with active build-up compensation

점성이 높고 축적물이 생성되기 쉬운 액체용

Liquicap FTI51은 점성이 높고 축적물이 쉽게 생성되는 액체의 포인트 레벨을 검출하기 위한 로드 프로브입니다. 또한 전도성 액체의 인터페이스와 거품을 검출하기 위해 사용됩니다. FTI51은 능동적인 축적물 보상으로 최고의 신뢰성을 제공하고 다양한 국제 인증을 획득하여 광범위한 어플리케이션에서 사용할 수 있습니다. 또한 프로세스에 닿는 부품이 내부식성 FDA 승인 재질로 만들어져 안전성이 뛰어납니다.

  • 장점

    • 간편하고 빠른 시운전과 버튼만 누르면 실행되는 교정으로 비용 절감

    • 능동적인 축적물 보상으로 신뢰도가 높고 안전한 측정

    • 다양한 인증과 승인을 획득한 신뢰도가 높은 범용 어플리케이션용

    • 짧은 반응 시간

    • 내부식성 재질 및 FDA 승인 재질로 만들어진 프로세스 접촉부

    • 2단계 과전압 보호

    • 전자 장치 교체 후 재보정 불필요

  • 적용 분야

    축적물을 형성하는 경향이 있는 액체. 다양한 액체의 인터페이스 검출. 하나의 프로세스 연결부로 2점 제어(펌프 제어). 전도성 액체의 거품 감지.

    • 프로세스 연결부: 플랜지, 나사, 특수 위생 프로세스 연결부

    • 온도: -80 ~ +200°C (-112 ~ +392°F)

    • 압력: 진공 ~ +100bar (진공 ~ +1,450psi)

    • 센서 길이: 6m (20ft)

    • 국제 방폭 인증, 오버필 방지 WHG, SIL, 위생 인증, 해양 승인

특징 및 사양

뒤로

Details

  • 측정 원리

    Capacitive Liquid

  • Characteristic / Application

    Capacitive rod probe

  • Specialities

    Interface detection
    Foam detection

  • Ambient temperature

    -50 °C ... +70 °C

    (-58 °F ... +158 °F)

    With separate housing:
    -50 °C ... +120 °C

    (-58 °F ... +248°F)

  • Process temperature

    -80 °C ... +200 °C
    (-112 °F ... +392 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 100 bar
    (Vacuum ... 1450 psi)

  • Main wetted parts

    Insulation material: PTFE, PFA
    316L

  • Process connection

    G 1/2 ... 1 1/2
    NPT 1/2 ... 1 1/2
    Flange from DN25.../ASME 1".../JIS 10K...

  • Process connection hygienic

    Tri-Clamp ISO2852 gap free plated

    Dairy coupling

    Flush mount

  • Sensor length

    Total length of probe: max 6 m (20 ft)

  • Communication

    2- wire 19-253 VAC

    3-wire
    PFM
    Relay DPDT
    DC-PNP
    8/16 mA

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, EAC

  • Safety approvals

    Overfill prevention WHG

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175

  • Marine approval

    GL/ ABS/ DNV

  • Options

    Inactive length

    Fully isolated active build-up compensation

    Ground tube

    Separate housing

  • Components

    Transmitter
    PFM: FTC325, FTC625, FTC470Z, FTC471Z
    3-wire:
    FTC325

  • Application limits

    Notice the pressure and temperature derating.
    Notice for non conductive medium the DK.
