Capacitance
Point level switch
Nivotester FTC325

Point level switch with intrinsically safe signal circuit for connection to a capacitance sensor

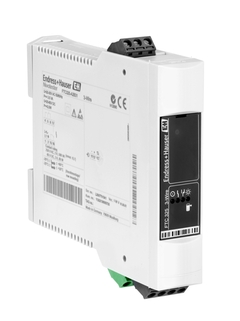

  • Nivotester FTC325 ©Endress+Hauser

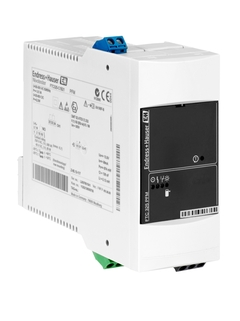

  • Nivotester FTC325 ©Endress+Hauser

The Nivotester FTC325 is a point level switch with intrinsically safe signal circuit for connection to a capacitance sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.

장점

  • Highest safety due to intrinsically safe signal circuit EEx ia IIC

  • Calibration using operating keys

  • High functional safety thanks to: FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function

  • Compact housing for easy series mounting on a standard DIN rail in the cabinet

  • Pluggable terminal blocks make wiring easy

  • Point level and alarm relay

적용 분야

For point level detection in tanks containing liquids and silos containing bulk solids. Also for capacitance level probes, which may be applied in hazardous areas of category ATEX II (1) GD. Overfill prevention for tanks containing flammable or non-flammable fluids hazardous to water and dry running protection for pumps.

  • Two-point control (Δs with 3-WIRE)

  • Ambient temperature: -20 to +50°C (-4 to +122°F)

  • International explosion protection certificates, overfill prevention WHG

특징 및 사양

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

기존 제품 / 신제품

선행 제품: Transmitter FTC420N, Transmitter FTC421, Transmitter FTC422, Transmitter FTC520Z, Transmitter FTC521Z
