Omnigrad S TAF12S
High temperature TC thermometer

Omnigrad S TAF12S

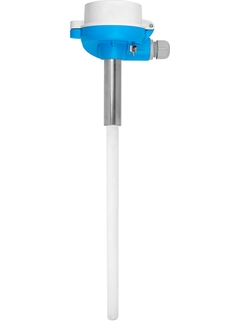

High temperature TC thermometer ©Endress+Hauser

Applicable for ceramic baking ovens, brickworks, porcelain production and glass industries

Measuring points with extremely high process temperatures require these special thermometers with ceramic thermowells and thermocouples made from special metals, such as platinum and rhodium. The thermowell made from ceramic materials serves as protection from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.

  • 장점

    • Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance

    • Long term stable measurement due to sensor protection with non-porous materials

    • Flexible product selection by modular design

    • Optimized life cycle costs by...

  • 적용 분야

    • The TAF12S are assemblies with single ceramic protection tubes, designed specifically for applications such as ceramic baking ovens, brickworks, porcelain production and glass industries. They contain a single or double TC insert in ceramic insulators.

    • Process temperatures: up to +1700 °C (+3092 °F)

특징 및 사양

뒤로

Details

  • 측정 원리

    Thermocouple

  • Characteristic / Application

    metric style

    modular temperature assembly

    high temperature (furnace)

    incl. single ceramic thermowell

  • Terminal head

    TA20A - aluminium - cover with screws

    TA20D - aluminium - hinged cover high

    TA30A - E+H, aluminium - cover low - w/o. display

    TA30D - E+H, aluminium - cover high

  • Thermowell / protection tube

    ceramic protection tube

  • Insert / probe

    ceramic capilarry, rigid

  • Outer diameter protection tube / Insert

    9,0 mm (0,35'')

  • Max. immersion length on request

    up to 2.500,00 mm (98,43'')

  • Material protection tube/ thermowell

    Ceramic (C610/C799)

  • Process connection

    compression fitting:

    G1/2"

    G3/4"

    G1"

    adjustable Flange

  • Tip shape

    straight

  • Operating temperature range

    Type S:
    0 C ...1.600 C

    (32 F ...2.912 F)

    Type R:

    0 C ...1.600 C

    (32 F ...2.912 F)

    Type B:

    600 C ...1.700 C

    (1.112 F ...3.092 F)

  • Max. process pressure (static)

    at 20 °C: 1 bar (15 psi)

  • Accuracy

    class 2 acc. to IEC 60584

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Certification

    SIL (transmitter only)
