TH12

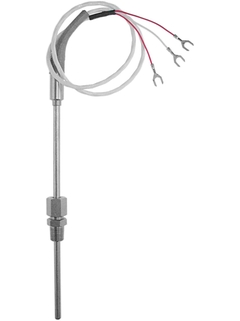

US style RTD sensor, cable probe

TH12

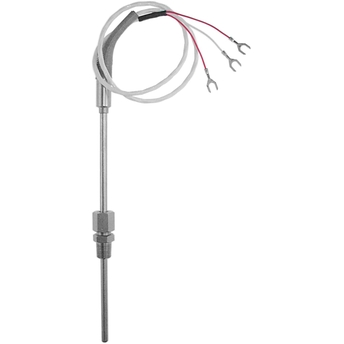

US style RTD sensor, cable probe ©Endress+Hauser

Cost efficient RTD sensor designed for use in the process industry or factory automation

The Pt100 cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • High flexibility due to customized immersion length

    • Fast response time with reduced/tapered tip form

    • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder

    • Improved galvanic isolation on most devices (2 kV)

  • 적용 분야

    The TH12 temperature sensors are RTD's designed for use in the process industry or factory automation type of environment. They are made up of a measurement probe with a RTD, insulation and sheath.

    Among other applications the sensors can be used on:

    • ...

특징 및 사양

뒤로

Details

  • 측정 원리

    Resistance Temperature Detector

  • Characteristic / Application

    US style

    cable probe

    process connection as compression fitting

    without neck

  • Thermowell / protection tube

    without (not intended to be used with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

    PTFE-insulated, rigid

  • Outer diameter protection tube / Insert

    1/8'' (3,18 mm)

    3/16'' (4,76 mm)

    1/4'' (6,35 mm)

    3/8'' (9,53 mm)

  • Max. immersion length on request

    up to 96" (2439 mm)

    others on request

  • Material protection tube/ thermowell

    Sensor sheath

    316/316L

  • Optional coating

    Not applicable

  • Process connection

    compression fitting:

    NPT1/8"

    NPT1/4"

  • Tip shape

    straight

    reduced

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    PT100 WW:

    -200 °C … 600 °C

    (-328 °F … 1.112 °F)

    PT100 TF:

    -50 °C … 200 °C

    (-58 °F … 392 °F)

  • Max. process pressure (static)

    at 20 °C: 40 bar (580 psi)

    depends on configuration

  • Accuracy

    class A acc. to IEC 60751

    class B acc. to IEC 60751

  • Response time

    63% rt = 2,0 s

  • Integration head transmitter

    Not applicable
