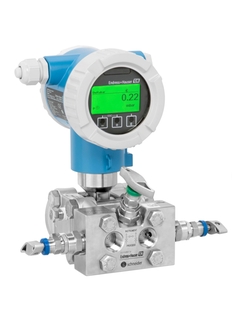

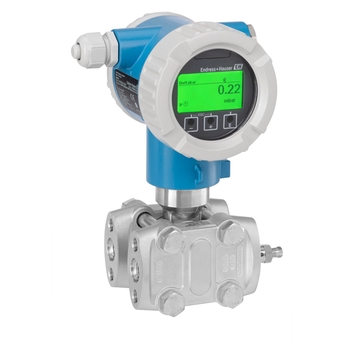

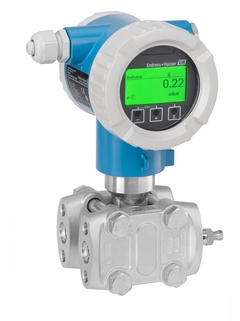

차압 트랜스미터
Deltabar PMD75B

사양 정보

• Accuracy

  Standard:
  up to 0.05 %
  Platinum:
  up to 0.035 %

• Max. measurement error

  Standard:
  up to 0.05 %
  Platinum:
  up to 0.035 %

• Measuring range

  10 mbar...250 bar
  (0.15 psi...3750 psi)

• Process temperature

  -40°C...+110°C
  (-40°F...+230°F)

• Pressure measuring range

  10 mbar...250 bar
  (0.15 psi...3750 psi)

• Main wetted parts

  316L, AlloyC,
  Tantal, Monel,
  Gold

• Max. process pressure

  420 bar (6300 psi)

• Material process membrane

  316L, AlloyC,
  Tantal,
  Monel,
  Gold

• Wetted materials

  316L,
  AlloyC,
  Tantal,
  Monel,
  Gold

• Measuring cell

  10 mbar...250 bar
  (0.15 psi...3750 psi)
