이 제품은 해당 국가에서 판매되지 않는 제품입니다.
사양 정보
-
Measurement range
0 to 5 mg/l total chlorine or
0 to 20 mg/l total chlorine -
Process temperature
0 to 55 °C , non-freezing
(32 to 130 °F) -
Process pressure
1 bar relative (14,5 psi relativ)
Max. 2 bar (max. 29 psi) -
Measuring method
Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
All components are reduced at the working electrode
Almost pH independent
적용 분야

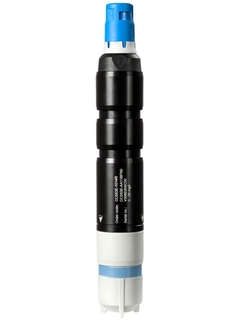

Total chlorine is the mixture of free and bound chlorine components and thus a good indicator of residual disinfectants in discharge and process water. Memosens CCS53E provides continuous measurements of total chlorine, even after periods when no chlorine is present. This enables to measure "zero" chlorine, the absence of chlorine. Thanks to Memosens 2.0 technology, the sensor combines maximum process and data integrity with simple operation. This is the perfect basis for predictive maintenance.
The sensor Memosens CCS53E for total chlorine measures reliably in:
Wastewater treatment plants: to control the outlet water and enable reuse
Process water in utilities of all industries: to detect chlorine and avoid any damage, for example in cooling towers
Food and beverage industry: to ensure hygienic filling and high food quality in washing water and to protect membranes in reverse osmosis systems
Drinking water: to ensure disinfection and avoid overdosing
Pool: to detect contaminants
장점
The sensor is not deactivated after periods of time when no chlorine is present, but reacts right away. This continuous measurement facilitates quick responses to process changes and ensures compliance with regulations.
The low-maintenance, amperometric sensor reduces the cost of ownership of the measuring point, particularly compared to colorimetric measuring systems.
High process up-time: pre-calibrating the sensor and swaping it with plug & play enables a fast sensor exchange. Plus, the polarization time is faster with Memosens 2.0.
Easy combination with other relevant parameters of liquid analysis such as pH and ORP by easily connecting the Liquiline multiparameter transmitter.
Wide measurement range for different applications: From zero to trace measurement up to total chlorine concentrations of 20 mg/l.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
-
기술 정보(TI)
TI Memosens CCS53E
Digital sensor with Memosens technology for determining total chlorine
EN KO 04/04/2024언어:
영어
버전:
04/04/2024
파일 크기:
1.4 MB
파일 이름:
TI01790CEN_0124-00.pdf
-
-
-
사용 설명서(BA)
BA Memosens CCS53E
Memosens 기술이 적용된 총 염소 측정용 디지털 센서
EN KO 19/01/2024언어:
한국어
버전:
19/01/2024
파일 크기:
2.3 MB
파일 이름:
BA02351CKO_0124-00.pdf
-
-
-
역량 브로셔(CP)
La disinfezione ci riguarda da vicino
Acqua pulita e sicura per acquedotti, depuratori e industrie
언어:
이탈리아어
버전:
14/03/2024
파일 크기:
3.6 MB
파일 이름:
CP01548C16IT_0123.pdf
-
-
-
역량 브로셔(CP)
Desinfektion ist überall
Sauberes und sicheres Wasser für Wasserwerke, Kläranlagen und Industrie
언어:
독일어
버전:
07/09/2023
파일 크기:
1.6 MB
파일 이름:
CP01548CDE_Desinfektion.pdf
-
-
-
역량 브로셔(CP)
Disinfection is all around us
Clean and safe water for waterworks, wastewater treatment plants and ind
언어:
영어
버전:
22/06/2023
파일 크기:
1.5 MB
파일 이름:
CP01548CEN_Disinfection.pdf
-
-
-
혁신(IN)
eBrochure Memosens disinfection portfolio
eBrochure Memosens disinfection portfolio
언어:
독일어
버전:
26/02/2024
파일 크기:
9.2 MB
파일 이름:
Memosens disinfection portfolio CCS5xE_IN01315C07DE_eBrochure.pdf
-
-
-
혁신(IN)
eBrochure Memosens Disinfection portfolio
eBrochure Memosens Disinfection portfolio
언어:
영어
버전:
20/02/2024
파일 크기:
9.2 MB
파일 이름:
Memosens disinfection portfolio CCS5xE_IN01315C07EN_eBrochure.pdf
-
-
-
EU 선언
Product family: Memosens
Product root: CCS50E-, CCS51E-, CCS53E-, CCS55E-, CCS58E-
Declaration number: EU_01142_02.24EN KO 24/11/2023언어:
영어
버전:
24/11/2023
파일 크기:
191.5 KB
파일 이름:
EU_01142_02.23 CCSxxE nonEx.pdf
-
-
-
UK 적합성 평가
Product family: Memosens
Product root: CCS50E-, CCS51E-, CCS53E-, CCS55E-, CCS58E-
Declaration number: UK_00566_02.24언어:
영어
버전:
24/11/2023
파일 크기:
188.4 KB
파일 이름:
UK_00566_02.23 CCSxxE nonEx.pdf
-
