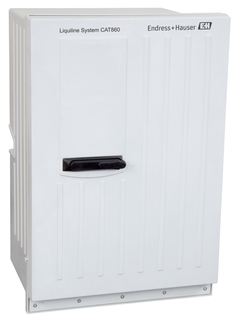

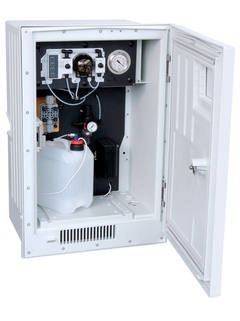

Liquiline System CAT860은 지자체 및 산업 폐수 처리 플랜트 유입구에서 직접 박테리아가 없는 샘플을 채취하기 위한 시스템으로, 지방 또는 섬유의 부하가 높은 어플리케이션에도 적합한 세라믹 필터가 장착되어 있습니다. 특수한 멤브레인 표면으로 세척이 간편하고 공구 없이 유지보수할 수 있어 운영 비용이 감소합니다. 또한 Memosens 기술이 적용되어 시운전이 간편하고 예측 유지보수를 지원합니다. CAT860을 다용도 Flexdip 홀더와 함께 사용하면 프로세스에 맞춰 손쉽게 설치할 수 있습니다.
Liquiline System CAT860은 지자체 및 산업 폐수 처리 플랜트용으로 설계되었습니다.
유입구 샘플링 포인트
폭기조
장점
Memosens 기술과 사용자 친화적인 Liquiline 작동 방식으로 신속한 시운전과 플러그 앤 플레이 지원
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Using seawater to flush toilets can save a lot of drinking water. To ensure a constant water supply, the sensors used must function reliably to meet the water quality objectives (WQO).
Examination of wastewater, using the Liquistation CSF48 and the Liquiport CSP48 mobile, can provide valuable information about the occurrence of Covid 19 infections in a specific area
Automatic sample conditioning system for supplying process measuring
devices with filtered sample from the inlet or sludge activatio
n phase of a wastewatertreatment plant
Automatic sample conditioning system for supplying process measuring devices with filtered sample from the inlet or sludge activatio n phase of a wastewatertreatment plant
Automatic sample conditioning system for supplying process measuring devices with filtered sample from sludge activation, secondary clarification or surface water
0 to 2.5 mg/l PO4-P (blue method) 0.05 to 10 mg/l PO4-P (blue method) 0.05 to 10 mg/l with dilution function to maximum 2.5 to 500 mg/l PO4-P (blue method) 0.5 to 20 mg/l PO4-P (yellow method) 0.5 to 50 mg/l PO4-P (yellow method) 0.5 to 50 mg/l with dilution function to maximum 10 to 1000 mg/l PO4-P (yellow method)
0 to 2.5 mg/l PO4-P (blue method) 0.05 to 10 mg/l PO4-P (blue method) 0.05 to 10 mg/l with dilution function to maximum 2.5 to 500 mg/l PO4-P (blue method) 0.5 to 20 mg/l PO4-P (yellow method) 0.5 to 50 mg/l PO4-P (yellow method) 0.5 to 50 mg/l with dilution function to maximum 10 to 1000 mg/l PO4-P (yellow method)
