사양 정보
-
Measuring range
0.05 to 2 mg/l Fe
0.1 to 5 mg/l Fe
0.1 to 5 mg/l with dilution function to maximum 2.0 to 100 mg/l Fe -
Process temperature
4 to 40 °C (39.2 to 104 °F)
-
Process pressure
At atmospheric pressure, < 0.2 bar
적용 분야

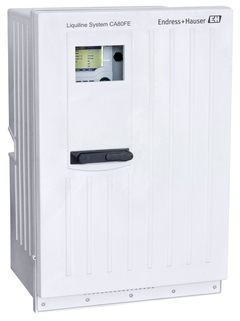

Liquiline System CA80FE offers precise, regulation-compliant online measurement. It supports you in controlling the iron content of drinking water, mineral water or source water for industrial processes. Like all Liquiline System analyzers, it enables plug & play of up to four Memosens sensors – minimizing the installation effort. Automatic calibration and cleaning and the low reagent consumption reduce operating costs while advanced diagnostics with remote access ensure process safety.
Liquiline System CA80FE monitors:
Iron content in drinking water and mineral water
Residual iron after precipitation, flocculation and filtration processes
Process water containing diluted iron
장점
Compliance with standard ferrozine method ensures direct comparability to lab measurements
Supports predictive maintenance by advanced diagnostics
Reduced operating costs through automatic calibration and cleaning as well as low reagent consumption
Easy upgrade of functionality - even to a complete measuring station - simply by adding modules and connecting Memosens sensors.
Comfortable remote access via integrated web server
Seamless integration into process control systems thanks to digital field busses such as Modbus, PROFIBUS or EtherNet/IP
동영상

FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
사용 설명서(BA)
Memosens
Sensor inputs with Memosens protocol
EN KO 30/05/202228/02/2019언어:
영어
버전:
30/05/2022
파일 크기:
3.3 MB
파일 이름:
BA01245CEN_0822-00.pdf
-
-
-
설치 설명서(EA)
Kit CM44x/CSXxx/CA80XX
Module 485MB or 485DP
For Ethernet configuration, PROFIBUS DP, Modbus RS485EN KO 28/11/2022언어:
영어
버전:
28/11/2022
파일 크기:
1.8 MB
파일 이름:
EA01447CEN_0122-00.pdf
-
-
-
설치 설명서(EA)
Kit CA80 Outdoor
Kit for mounting analyzer on a post outdoor
EN KO 14/02/2020언어:
영어
버전:
14/02/2020
파일 크기:
414.2 KB
파일 이름:
EA01293CEN_0119.pdf
-
