사양 정보
-
Measurement range
Standard sensor: 0 to 60 mg/l, 0 to 600 %SAT, 0 to 1200 hPa, 0 to 100 Vol%
Trace sensor: 0 to 10 mg/l, 0 to 120 %SAT, 0 to 250 hPa, 0 to 25 Vol% -
Process temperature
-5 to 135 °C (23 to 275 °F)
-
Process pressure
1 to 12 bar abs (14.5 to 174 psi)
적용 분야

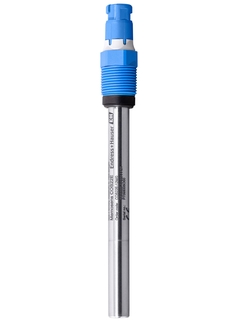

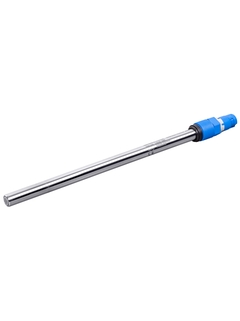

Memosens COS22E is fully compliant to FDA and USP and thus suitable for hygienic and sterile applications. The sensor is low-maintenance and ensures long-term stability - even with frequent sterilization. Its trace version safeguards your products, process and plant equipment from oxygen influences. Thanks to Memosens 2.0 digital technology, COS22E offers extended storage of calibration and process data providing the perfect basis for predictive maintenance and efficient operation.
Oxymax COS22E measures oxygen in the core processes of many industries:
Life sciences and biotechnology: Process control in fermentation
Food & Beverages
Water treatment: Boiler feedwater
Inertizations
Residual oxygen measurement in processes
With its international explosion-protection approvals, the digital sensor is suitable for hazardous area use.
장점
Low maintenance: The modular sensor design enables fast exchange of membrane cap and electrolyte.
-
Full compliance with all relevant regulations for hygienic processes ensures the safety of your product.
High accuracy of the measuring principle enables precise measurement resulting in best product quality.
The sensor is suitable for application in hazardous areas.
IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Increased plant availability: Memosens technology and Liquiline transmitters enable plug & play for fast commissioning and sensor exchange.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
기술 정보(TI)
Memosens COS22E
영어 버전 - 02/2022
Hygienic amperometric oxygen sensor with maximum measurement stability over multiple sterilization cycles
EN KO 08/02/202207/10/2021언어:
영어
버전:
08/02/2022
파일 크기:
839.8 KB
파일 이름:
TI01619CEN_0222-00.pdf
-
-
-
사용 설명서(BA)
Memosens COS22E
영어 버전 - 02/2022
Amperometric oxygen sensor with Memosens 2.0 technology
EN KO 08/02/202207/10/2021언어:
영어
버전:
08/02/2022
파일 크기:
2 MB
파일 이름:
BA02145CEN_0222-00.pdf
-
-
-
기술 정보(TI)
Memosens COS22E
Hygienic amperometric oxygen sensor with maximum measurement stability
over multiple sterilization cyclesEN KO 08/02/202207/10/2021언어:
영어
버전:
08/02/2022
파일 크기:
839.8 KB
파일 이름:
TI01619CEN_0222-00.pdf
-
-
-
사용 설명서(BA)
Memosens COS22E
Amperometric oxygen sensor with Memosens 2.0 technology
EN KO 08/02/202207/10/2021언어:
영어
버전:
08/02/2022
파일 크기:
2 MB
파일 이름:
BA02145CEN_0222-00.pdf
-
-
-
요약 지침서(KA)
Memosens COS22E
Memosens 2.0 기술이 적용된 전류 측정식 산소 센서
EN KO 07/10/2021언어:
한국어
버전:
07/10/2021
파일 크기:
1.2 MB
파일 이름:
KA01541CKO_0121.pdf
-
-
-
설치 설명서(EA)
Kit COS22Z-xxxx
Replacement for oxygen sensors COS22 / COS22D / COS22E
EN KO 29/09/2022언어:
영어
버전:
29/09/2022
파일 크기:
994.9 KB
파일 이름:
EA01437CEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
Supplement to BA02145C
Supplement to BA02146C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 17/11/2021언어:
영어
버전:
17/11/2021
파일 크기:
504.9 KB
파일 이름:
XA02752CEN_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
KOR Ex ia IIC T6… T4 Ga
방폭 지역용 전기 계기의 안전 지침서EN KO 18/03/2022언어:
한국어
버전:
18/03/2022
파일 크기:
1 MB
파일 이름:
XA02791CKO_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
EAC Ex 0Ex ia IIC T6 … T4 Ga X
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 11/05/2022언어:
영어
버전:
11/05/2022
파일 크기:
420.1 KB
파일 이름:
XA02840CEN_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens oxygen sensors
NEPSI Ex ia IIC T6/ T4 Ga
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 15/03/2023언어:
영어
버전:
15/03/2023
파일 크기:
591.3 KB
파일 이름:
XA03110CEN_0123-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens oxygen sensors
IS Class I Div 1 Groups A, B, C, D
Ex ia IIC T6... T4 Ga
Class I Zone 0 AEx ia IIC T6... T4 Ga
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 12/01/2023언어:
영어
버전:
12/01/2023
파일 크기:
499.7 KB
파일 이름:
XA03088CEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS22E Memosens COS51E
Supplement to BA02145C
Supplement to BA02146C
Safety instructions for electrical equipment in explosion-hazardous
areasEN KO 29/11/202105/07/2021언어:
영어
버전:
29/11/2021
파일 크기:
1.3 MB
파일 이름:
XA02621CEN_0221-00.pdf
-
