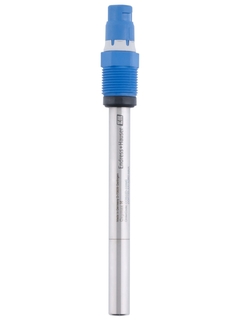

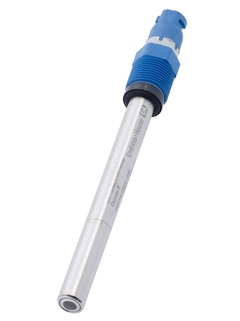

디지털 용존산소 센서
Oxymax COS22D

비디오를 통해 전류 측정 산소 및 광학 산소 측정 원리에 대해 확인해 보십시오.

비디오를 통해 Memosens 기술의 프로세스 관리 및 유지보수 최적화를 확인해 보시기 바랍니다.

표준, 위생 및 살균 어플리케이션을 위한 Memosens 전류 측정 산소 센서

Oxymax COS22D는 생산물, 프로세스 및 플랜트 장비를 산소의 영향으로부터 보호합니다. 이 센서는 측정 범위가 넓어 어플리케이션을 더욱 효율적으로 모니터링 및 제어할 수 있을 뿐만 아니라, 유지보수가 용이하고 빈번한 살균과 오토클레이브 처리에도 뛰어난 장기 안정성을 제공합니다. COS22D는 Memosens 디지털 기술을 탑재하여 프로세스 및 데이터 무결성을 극대화하고 작동이 간편할 뿐만 아니라 실험실 교정과 예측 유지보수가 용이합니다.

사이징
로그인 및 사양 구성 후의 가격

비교

빠른 선택

제안된 옵션 중에서 선택하십시오.

<%label%>
-- selected coding

-- selected label
<%label%>
더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

선택적 추가 항목

계속하려면 개별 사양 구성 을 사용하십시오.

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.

추가 구성 요소

1 채널 트랜스미터
Liquiline M CM42

방폭 및 비 방폭 지역과 화학, 생명과학 및 식품 산업을 위한 2선식 현장 계기
추가 정보
비교
1/2 채널 트랜스미터
Liquiline CM442

모든 산업을 위한 확장형 멀티파라미터 현장 계기
추가 정보
비교
1/2 채널 트랜스미터
Liquiline CM442R

모든 산업을 위한 컴팩트한 멀티파라미터 DIN 레일 및 캐비닛 계기
추가 정보
비교
Zero-point gel
COY8

Ready-to-use gel for validation, calibration, and adjustment of oxygen and disinfection sensors
추가 정보
비교
1 채널 트랜스미터
Liquiline Compact CM82

모든 산업의 방폭 및 비 방폭 어플리케이션을 위한 멀티파라미터 현장 계기
추가 정보
비교

장점
신뢰할 수 있는 장기 안정성과 선형 측정
유지보수가 용이한 설계
CIP/SIP 및 오토클레이브 처리에 적합
혁신적인 위생 설계(EHEDG)
USP class VI
방폭 지역 사용 승인 획득

적용 분야
Oxymax COS22D는 다음과 같은 다양한 산업 분야의 핵심 프로세스에서 산소를 측정합니다.

제약 및 생명공학
– 효소 생산 프로세스 제어
– 배양 제어

식음료

화학

수처리
– 보일러 급수
– WFI(Water for Injection)

불활성화

프로세스의 잔류 산소 측정

이 디지털 센서는 ATEX, FM, CSA, NEPSI 등 국제 방폭 승인을 획득해 방폭 지역에서의 사용에 적합합니다.

특징 및 사양

뒤로

Details

측정 원리

Sensor Oxygen
Application

Beverage, pharmaceutics, biotechnology, water treatment, process, chemical, inertization
Installation

Standard process connection Pg 13.5
Installation in standard pH assemblies possible
Characteristic

Digital or analog sensor for long-term stable oxygen measurement for frequent sterilization and autoclaving
CO2 compatible trace sensor for the beverage industry
Trace sensor in the power plant sector
Measurement range

0.001 to 20 mg/l
0 to 200 %SAT
0 to 400 hPa
Measuring principle

Amperometric measurement of oxygen
Design

Membrane-covered 2-electrode oxygen sensor with teflon-membrane, stainless steel sensor
Material

Sensor body: stainless steel 1.4435
Membrane: PTFE coated stainless steel net with a silicone coating
Dimension

Diameter: 12 mm (0.47 inch)
Shaft length: 120, 225, 360 and 420 mm
(4.72, 8.86, 14.2 and 16.5 inch)
Process temperature

-5 to 135 °C
(23 to 275 °F)
Process pressure

1 to 12 bar abs
(14.5 to 174 psi)
Temperature sensor

Integrated NTC temperature sensor
Connection

Memosens-connection head
Additional certifications

Material certification 3.1
EHEDG Type EL Class I
