Liquiphant FTL50

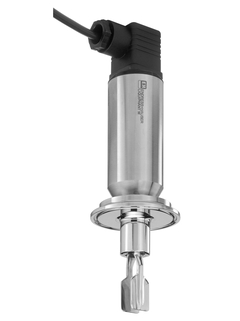

Liquiphant FTL50 ©Endress+Hauser

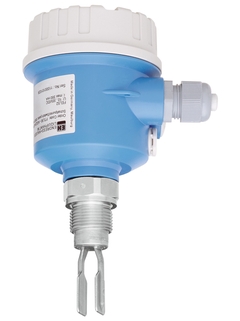

Liquiphant FTL50 ©Endress+Hauser

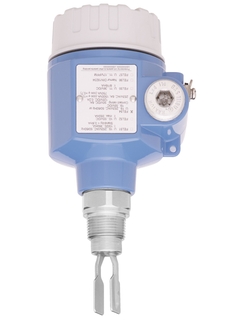

Liquiphant FTL50 ©Endress+Hauser
Liquiphant FTL50 ©Endress+Hauser

Vibronic measuring principle

Liquiphant with permanent function check is the safe choice for point level detection in liquids

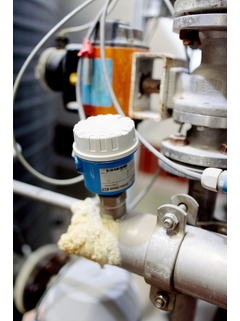

Liquiphant FTL50 application ©Endress+Hauser

Compact vibration point level switch for liquids in all industries

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

  • 장점

    • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
      IEC 61508/IEC 61511-1

    • International explosion protection certificates and overfill prevention certificate (WHG)

    • No calibration required, easy to start up

    • No mechanically...

  • 적용 분야

    Point level switch for all liquids.

    • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

    • Temperature: -50 to +150°C (-58 to +302°F)

    • Pressure: -1 to +64bar (-14.5 to +928psi)

    • Sensor material: 316L, Alloy

    • International...

Details

  • 측정 원리

    Vibration Liquids

  • Characteristic / Application

    Liquiphant M Density
    with Density Computer FML621
    Temperature and pressure measurement

    Modular housing concept

    Wide range of process connections

  • Supply / Communication

    Transmitter power supply (MUS)

  • Ambient temperature

    -50...70°C

    -50...60°C for hazardous applications

  • Process temperature

    0...80°C (validity of accuracy data)

    -50...0°C /80...150°C (with reduced technical data)

  • Process pressure absolute

    0...25 bar

    >25...64 bar (with reduced technical data)

  • Wetted parts

    316L/C4

  • Sensor length

    Compact: 50.5 mm

  • Output

    Pulse

  • Certificates / Approvals

    ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

  • Specialities

    Commissioning with ReadWin2000

  • Components

    Density Computer FML621

  • Other approvals and certificates

    SIL2/ SIL3

  • 측정 원리

    Vibration Liquids

  • Characteristic / Application

    Modular housing concept
    wide range of process connections
    Analogue and bus interfaces
    Extensive certificate range (e.g. Ex,WHG)
    compact, e.g. pipes

  • Specialities

    Foamdetection
    Detekt a densitychange
    second line of defense

  • Supply / Communication

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC or 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • Ambient temperature

    -50 °C...+70 °C
    (-58 °F...+158 °F)

  • Process temperature

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...64 bar
    (Vacuum...928 psi)

  • Min. density of medium

    0.5g/cm³(0.4g/cm³ option)

  • Main wetted parts

    316L, Alloy

  • Process connection

    Thread:

    G3/4A, G1A, R3/4", R1, NPT3/4, NPT1

    Flange:

    DN25...DN100,

    ASME 1"...4",

    JIS 25A...100A

  • Process connection hygienic

    Tri-Clamp ISO2852

  • Communication

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC or 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • Certificates / Approvals

    ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

  • Safety approvals

    Overfill prevention WHG

    SIL2/ SIL3

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.3

    AD2000

  • Marine approval

    GL/ ABS/ DNV

  • Options

    Heavy duty stainless steel housing mainly for the oil and gas industry

  • Components

    FTL325P/FTL375P Interface PFM
    FTL325N/FTL375N Interface NAMUR
