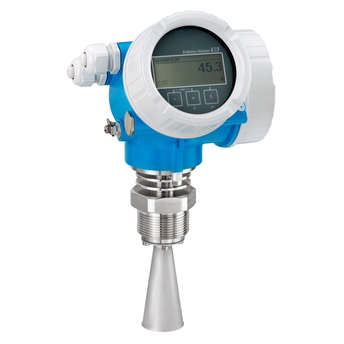

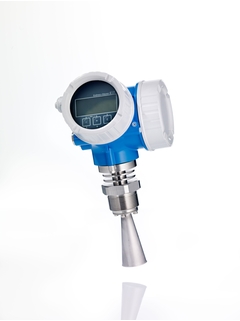

Micropilot FMR51

레이다 레벨계
Micropilot FMR51 ©Endress+Hauser
레이다 레벨계
Micropilot FMR51 ©Endress+Hauser

Time-of-Flight 측정 원리

Levelflex FMP5x와 Micropilot FMR5x의 시운전 영상

안전한 레벨 측정을 위한 HistoROM 데이터 관리 개념

새로운 Multi-Echo Tracking 평가에 의한 안전한 레벨 측정

난류 발생시에도 보다 안정적인 측정 신호를 제공하는 Advanced Dynamics가 포함 된 Micropilot

고급 진단 기능이있는 Micropilot FMR5x는 거품 감지 기능을 제공합니다

레이다 레벨계

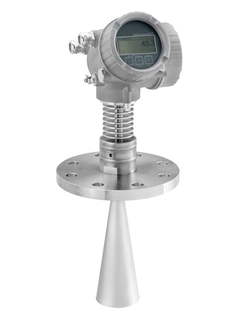

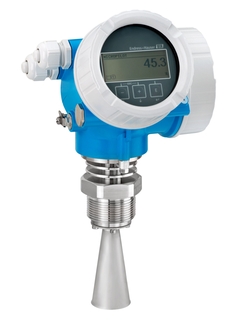

Micropilot FMR51 ©Endress+Hauser
레이다 레벨계

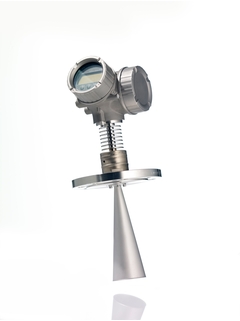

Micropilot FMR51 ©Endress+Hauser

가장 까다로운 유체 레벨 측정을 위한 표준 센서

Micropilot FMR51은 정유 및 가스 산업과 화학 산업의 고온 및 고압 같은 혹독한 프로세스 조건에서의 레벨 측정을 위한 솔루션입니다. FMR51 Free Space 레이다는 혁신적이고 특허받은 센서 설계로 최고의 신뢰성을 제공합니다. Micropilot은 액체, 페이스트 및 슬러리의 레벨을 비접촉식으로 연속 측정합니다. 측정이 유체, 온도 변화, 가스층 또는 증기 변화의 영향을 받지 않으며, SmartBlue 앱을 통해 원격으로 액세스할 수 있습니다.

  • 장점

    • IEC 61508부터 SIL3 (동종 리던던시)에 따라 개발된 하드웨어 및 소프트웨어

    • 빠르고 간편한 시운전, 유지보수 및 진단을 위한 HistoROM 데이터 관리 개념

    • 새로운 Multi-Echo Tracking 평가 덕분에 용기에 방해물이 있어도 최고의 신뢰성 유지

    • 하트비트(Heartbeat) 기술을 통해 전체 수명 주기 동안 경제성과 플랜트 운영 안전성 제공

    • 제어 또는 자산 관리 시스템에 완벽하게 통합되고 직관적인 메뉴 안내식 작동(현장에서 또는 제어...

  • 적용 분야

    가혹한 조건에서의 레벨 측정을 위한 혼 안테나

    • 프로세스 연결부: 나사, Tri-Clamp 또는 플랜지

    • 온도: -196 ~ +450°C (-321 ~ + 842°F)

    • 압력: -1 ~ +160bar (-14.5 ~ +2,320psi)

    • 최대 측정 범위: 40m (131ft), 동역학이 향상된 경우 70m (230ft)

    • 정확성: ±2mm

    • K 밴드: 26GHz

    • 국제 방폭 인증, 오버필 방지 WHG, SIL, 해양 승인, 5 포인트 선형 프로토콜

    • 블루투스를...

특징 및 사양

뒤로

Details

  • 측정 원리

    Level radar

  • Characteristic / Application

    Premium device for continuous non-contact level measurement of liquids, pastes and slurries even under extreme process conditions;

    Horn antenna: 40...100 mm

  • Specialities

    Heartbeat Technology,

    SIL 2 according to IEC 61508,

    Bluetooth® commissioning,

    Operation and maintenance SmartBlue App,

    Safety and reliability with Multi-Echo Tracking,

    HistoROM,

    RFID TAG for easy identification

  • Supply / Communication

    2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)

    4-wire (HART)

    Bluetooth® wireless technology and App (optional)

  • Frequency

    K-band (~26 GHz)

  • Accuracy

    +/- 2 mm (0.08 in)

  • Ambient temperature

    -50...+80 °C

    (-58...+176 °F)

  • Process temperature

    XT: -196...+280 °C

    (-321...+536 °F)

    HT: -196...+450 °C

    (-321...+842 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...160 bar

    (Vacuum...2320 psi)

  • Main wetted parts

    316L, Alloy C, PTFE, ceramic

  • Process connection

    Thread:

    MNPT 1 1/2, R 1 1/2

    Flange:

    DN50...DN150,

    ASME 2"...6",

    JIS 10K, 63K

  • Process connection hygienic

    Tri-Clamp ISO2852

  • Application

  • Max. measurement distance

  • Radar_Mediengruppe_en.jpg
  • Communication

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

    Bluetooth® wireless technology

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC

  • Safety approvals

    Overfill prevention WHG

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.3

    AD2000

  • Marine approval

    GL/ ABS/ LR/ BV/ DNV

  • Options

    Display,

    Customized parameterization,

    Remote operation via SmartBlue App using Bluetooth®,
    Gas-tight feed through,

    Antenna Extension,

    PWIS free

  • Application limits

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification
  • 19
    • Nr 19 Order code 71115174

      Housing filter 316L, GT18, 1 set

      Consists of: 2x filter plug metall 316L. 1x pressure compensation filter. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 19 Order code 71115175

      Housing filter Brass/Ni GT19/20, 1 set

      Consists of: 2x filter plug brass nickel, pressure compensation filter. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 17
    • Nr 17 Order code 71115176

      Set housing securing clamps

      Usage: housing GT18/GT19/GT20, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 20
    • Nr 20 Order code 71110281

      Cover GT18 316L, HNBR

      Material: 316L. O-ring, EPDM, PTFE coated. Usage: FMP51/FMP52/FMP54/FMP55/ FMP56/FMP57, FMR51/FMR52/FMR53/ FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110282

      Cover GT18 316L, sight glass, HNBR

      Material: 316L. O-ring NBR, PTFE coated. Usage: FMP51/FMP52/FMP54/FMP55/ FMP56/FMP57, FMR51/FMR52/FMR53/ FMR54/FMR57, FMR62/FMR67, FHX50. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110292

      Cover GT19 PBT, sight glass, EPDM

      Material: plastics PBT-FR sight glas PC. O-ring EPDM, PTFE coated. Usage: FHX50, FMP50/FMP51/FMP52/ FMP53/FMP54/FMP55/FMP56/FMP57, FMR50/ FMR51/FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110293

      Cover GT19 PBT, EPDM

      Material: plastics PBT, metallized. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110297

      Cover GT20 Alu, sight glass, HNBR

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71110299

      Cover GT20 Alu, HNBR

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71383631

      Cover GT18 316L, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383666

      Cover GT18 316L, sight glass, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383674

      Cover GT20 Alu, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383675

      Cover GT20 Alu, sight glass, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 25
    • Nr 25 Order code 71110284

      Cover GT18 316L, terminal Ex d, HNBR

      Material: 316L. O-ring EPDM /PTFE coated. Usage: terminal compartment Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110291

      Cover GT18 316L, terminal Ex, HNBR

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, not for Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110295

      Cover GT19 PBT, Terminal Ex, EPDM

      Material: plastics PBT, metallized. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71110301

      Cover GT20 Alu, Terminal Ex, HNBR

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71110302

      Cover GT20 Alu, Terminal Ex d, HNBR

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185516

      Cover GT18 316L, Terminal, OVP, HNBR

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMP54/FMP56/FMP57, FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71185517

      Cover GT20 Alu, Terminal, OVP, HNBR

      Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185518

      Cover GT19 PBT, Terminal, OVP, EPDM

      Material: plastic PBT, metallizied. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71383668

      Cover GT18 316L, terminal Ex, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383670

      Cover GT18 316L, terminal Ex d, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383671

      Cover GT18 316L, Terminal, OVP, FVMQ

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383679

      Cover GT20 Alu, Terminal Ex, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383680

      Cover GT20 Alu, Terminal Ex d, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383682

      Cover GT20 Alu, Terminal, OVP, FVMQ

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 65
    • Nr 65 Order code 71110303

      Sealing set GT18/GT19/GT20, EPDM, HNBR

      Consists of: O-ring 88.5x3.53 EPDM/PTFE, cover electronics compartment, housing GT19. O-Ring 88.5x3.53 NBR, cover electronics compartment, housing GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, cover terminal compartment, housing GT19. O-Ring 91.67x3.53 NBR, cover terminal compartment, housing GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, housing/sensor. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 65 Order code 71384797

      Sealing set GT18/20, FVMQ

      Consists of: O-Ring 88,5x3,53 FVMQ cover electronics compartment, housung GT18, GT20. O-Ring 91,67x3,53 FVMQ cover terminal compartment, housung GT18, GT20. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 34
    • Nr 34 Order code 71108594

      I/O module 2-wire, 4-20mA, HART, Ex, V2

      Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71108599

      I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1

      Non-Ex, Ex. 1x current output HART, 1x PFS. PFS=switch output. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57. FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71164940

      I/O module, 2-wire, PA/FF, PFS, Ex, V2

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71187812

      I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2

      Version 2. Not for Ex d/XP. LP=low powered. 1x current output HART. Usage: FMP50/FMP51/FMP52/FMP53/FMP54/ FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/ FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207473

      I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 10.4-48VDC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207474

      I/O mod. Level, 2-wr.2x4-20mA,HART,Ex,V2

      Non-Ex, Ex. Current output, 4-20mA HART + 4-20mA analog. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71207475

      I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2

      Non-Ex, Ex. 90-253VAC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 37
    • Nr 37 Order code 71110279

      Terminal set 4-wire, I/O module

      Consists of: 2x terminal 2-pole, green. 2x terminal 2-pole, red. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 37 Order code 71110280

      Terminal set 2-wire, I/O module

      Consists of: 4x terminal 2-pole, green. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 40
    • Nr 40 Order code XPD0024-

      Display module, SD02, push buttons

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Consists of: Display SD02, helix cable, ribbon cable, connector cover.

    • Nr 40 Order code XPD0025-

      Display module, SD03, Touch Control

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Consists of: Display SD03 illuminated, ribbon cable, connector cover.

  • 55
    • Nr 55 Order code 71187601

      Horn 40mm/1-1/2", 316L

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. Usage: FMR51.

    • Nr 55 Order code 71187602

      Horn 50mm/2", 316L

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. Usage: FMR51.

    • Nr 55 Order code 71187603

      Horn 80mm/3", 316L

      Material: 316L. Screws M4x14, 316L. Hexagon screw M4x8, steel. Spring washers, 316L. Usage: FMR51/FMR57.

    • Nr 55 Order code 71187606

      Horn 100mm/4", 316L

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. Usage: FMR51.

    • Nr 55 Order code 71187608

      Horn 40mm/1-1/2", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187609

      Horn 50mm/2", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187610

      Horn 80mm/3", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187613

      Horn 100mm/4", 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187614

      Horn 40mm/1-1/2", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187619

      Horn 50mm/2", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187620

      Horn 80mm/3", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71187621

      Horn 100mm/4", AlloyC, 3.1

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71236711

      Horn 40mm/1-1/2", length=51mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71236722

      Horn 50mm/2", length=80mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71236723

      Horn 80mm/3", length=176mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71236724

      Horn 40mm/1-1/2", length=51mm, 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate, FMR51.

    • Nr 55 Order code 71236726

      Horn 50mm/2", length=80mm, 316L, 3.1

      Material: 316L. Screws M4x10, 316L. Nordlock washers, 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate FMR51.

    • Nr 55 Order code 71236727

      Horn 80mm/3", length=176mm, 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate, FMR51.

    • Nr 55 Order code 71236728

      Horn 100mm/4", length=247mm, 316L, 3.1

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. Usage: variable antenna extension, 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate, FMR51.

    • Nr 55 Order code 71236737

      Horn 100mm/4", length=247mm, 316L

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273145

      Horn 40mm/1-1/2", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71273148

      Horn 50mm/2", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71273151

      Horn 80mm/3", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Hexagon screw M4x8, steel. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51/FMR57.

    • Nr 55 Order code 71273154

      Horn 100mm/4", 316L, 3.1 + PMI test

      Material: 316L. Screws M4x14, 316L. Spring washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71273156

      Horn 40mm/1-1/2",l=51mm, 316L, 3.1 + PMI

      Material: 316L. Screws M4x14, 316L. Nordlock washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273157

      Horn 50mm/2", length=80mm, 316L, 3.1+PMI

      Material: 316L. Screws M4x10, 316L. Nordlock washers, 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273158

      Horn 80mm/3",length=176mm, 316L, 3.1+PMI

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71273162

      Horn 100mm/4",l=247mm,316L, 3.1+PMI test

      Material: 316L. Screws M4x14, 316L. Nordlock washers 316L. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: variable antenna extension, FMR51.

    • Nr 55 Order code 71274670

      Horn 40mm/1-1/2", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71274677

      Horn 50mm/2", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71274680

      Horn 80mm/3", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Nr 55 Order code 71274681

      Horn 100mm/4", AlloyC, 3.1 + PMI test

      Material: AlloyC. Screws M4x10, AlloyC. 3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate. PMI test (XRF), internal procedure, wetted metallic parts, inspection certificate. Usage: FMR51.

    • Order code 71162242

      Weather prot. cover GT18/GT19/GT20, 316L

      Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/ FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 30
