정전용량식 포인트 레벨 스위치
Minicap FTC260

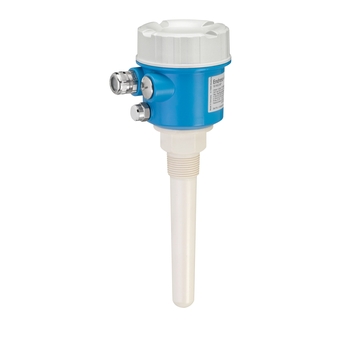

Minicap FTC260 플라스틱 하우징 ©Endress+Hauser

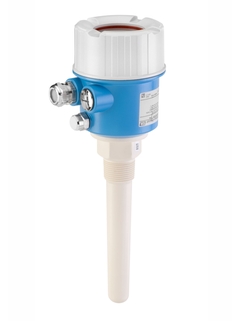

Minicap FTC260 알루미늄 하우징 ©Endress+Hauser
Minicap FTC260 어플리케이션 ©Endress+Hauser
  • Minicap FTC260 플라스틱 하우징
  • Minicap FTC260 알루미늄 하우징
  • Minicap FTC260 어플리케이션

가벼운 분체를 위한 설계

Minicap FTC260은 분체의 포인트 레벨 검출을 위한 간단하고 비용 효율적인 로드 프로브로, 유해한 유체와 다량의 축적물이 수반되는 어플리케이션에 특히 적합합니다. 곡물, 밀가루, 분유, 동물 사료, 시멘트, 초크, 석고 같은 가벼운 분체의 포인트 레벨 검출을 위해 설계되었습니다.

추가 구성 요소

  • 장점

    • 교정 없이 간편하게 설치 및 시운전

    • 마모 부품이 없이 기계적 안전성, 비용 효율성 및 사용 수명이 우수함

    • 능동 축적물 보상으로 작동 안전성과 신뢰성이 뛰어남

  • 적용 분야

    입자 크기가 최대 30mm이고 유전상수(εr)가 1.6 이상인 가벼운 분체의 포인트 레벨 검출용.
    일반적인 어플리케이션: 곡물, 밀가루, 분유, 동물 사료, 시멘트, 초크, 석고.

    • 프로세스 연결부: 나사형

    • 온도: -40 ~ +80°C (-40 ~ +176°F)

    • 압력: -1 ~ +25bar (-14.5 ~ +360psi)

    • 센서 길이: 140mm (5.51")

    • 국제 방폭 인증, 오버필 방지 WHG

특징 및 사양

뒤로

Details

  • 측정 원리

    Capacitive Solid

  • Characteristic / Application

    Compact rod probe with build-up compensation
    easy start up

  • Specialities

    FDA-listed material

  • Supply / Communication

    10,8 ... 45V DC, DC-PNP 3-wire
    20 ... 253V AC, or
    20 ... 55V DC, Relay output

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -40 °C ... 130°C
    (-40 °F ... 266 °F)

  • Process pressure absolute / max. overpressure limit

    -1 ... 25 bar
    (-14.5 ... 360 psi)

  • Main wetted parts

    PPS = Polyphenylene sulphide
    (glass fibre content approx. 40%)

  • Process connection

    R1"
    NPT1"

  • Sensor length

    140 mm (5.51")

  • Communication

    PNP transistor output
    Relay output (potential-free
    change-over contact / SPDT)

  • Certificates / Approvals

    ATEX, IEC, FM, CSA, NEPSI, EAC

  • Options

    Aluminium Housing

  • Application limits

    Solids, grain size max. 30 mm (1.2"),
    DK min 1,6
    Flexural strength 1400 N (at probe tip)
