사양 정보
-
Process temperature
PA version: max. 80 °C (max. 176 °F)
Stainless steel pressure cylinder: max. 120 °C (248 °F) -
Process pressure
PA pressure cylinder: max. 6 bar (87 psi)
Stainless steel pressure cylinder: max. 10 bar (145 psi) at 40 °C (104 °F)
적용 분야

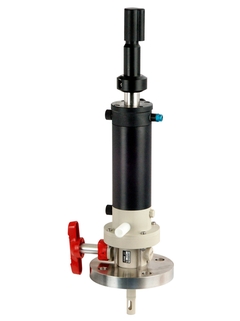

The Cleanfit CPA474 retractable assembly is designed for applications which require safe separation from the process and contain media that could affect stainless steel. It offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.
Cleanfit CPA474 is intended for use in tanks and pipes in:
Chemical industry
Wastewater / industrial water
Power plants
Refuse incinerators
It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA cylinder).
장점
Safe and reliable separation from the process by ball valve, even under harsh conditions
Suitable for corrosive media: Only polymers (PP, PVDF, PEEK) in contact with medium
No process interruption for electrode cleaning and calibration – saves maintenance time and costs
Extended operating life of electrodes due to automatic cleaning
-
Flexible adaptation to all applications by great variety of materials and process connections
기존 제품
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
-
기술 정보(TI)
Technical Information Retractable Assembly Cleanfit CPA474
Retractable process assembly with ball valve, for pH and ORP electrodes
EN KO 01/04/201001/02/200501/09/200301/10/2002언어:
영어
버전:
01/04/2010
파일 크기:
1009.5 KB
파일 이름:
TI345CEN_0410.pdf
-
-
-
기술 정보(TI)
Technical Information Topcal S CPC310
Fully automatic measuring, cleaningand calibration system in hazardous
and non-hazardous areasEN KO 22/07/201501/07/2006언어:
영어
버전:
22/07/2015
파일 크기:
2 MB
파일 이름:
TI00404CEN_1315.pdf
-
-
-
특별 문서(SD)
SD CleanFit Servicekits / Spare part kits
CleanFit Wechselarmaturen / Retractable assemblies
EN KO 01/07/2003언어:
영어
버전:
01/07/2003
파일 크기:
1.6 MB
파일 이름:
Sd096ca2.pdf
-
-
-
역량 브로셔(CP)
pH measurement in industrial processes
Selection and engineering guide for different industries and
applications언어:
영어
버전:
02/12/2021
파일 크기:
3.2 MB
파일 이름:
CP00010CEN_1621_pH selection guide_2021.pdf
-
-
-
역량 브로셔(CP)
産業プロセスにおけるpH測定
さまざまな産業およびアプリケーション向けのpH測定セレクションガイド
언어:
일본어
버전:
08/02/2024
파일 크기:
5.8 MB
파일 이름:
pH selection guide_CP00010C.pdf
-
-
-
역량 브로셔(CP)
pH-Messung in Industrieprozessen
Auswahl- und Engineering-Hilfe für verschiedene Industriebranchen und
Applikationen언어:
독일어
버전:
01/12/2021
파일 크기:
3.3 MB
파일 이름:
CP00010CDE_1621_pH Auswahlhilfe_2021.pdf
-
-
-
제조사 신고서
Product family: CleanFit P
Product root: CPA473-, CPA474-
Declaration number: HE_01323_01.20
Manufacturer specification: Explosion protectionEN KO 14/08/2020언어:
영어
버전:
14/08/2020
파일 크기:
191.8 KB
파일 이름:
CPA47x_HE Ex_HE_01323_01.20.pdf
-
-
-
제조사 신고서
Product family: CleanFit P
Product root: CPA474-
Declaration number: HE_01350_01.20
Manufacturer specification: PEDEN KO 23/09/2020언어:
영어
버전:
23/09/2020
파일 크기:
209.2 KB
파일 이름:
Klassifizierungsbescheinigung nach DGRL für CPA474.pdf
-
