Assembly for process photometers
Flow assembly for a variety of optical inline measurements

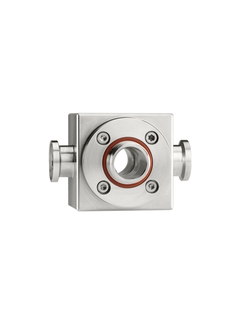

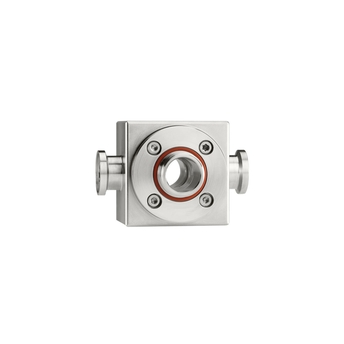

OUA260 is the best-in-class flow assembly for absorption, color and turbidity measurements. Its ultra-hygienic design and certified biocompatibility meet the highest demands to protect your products reliably from contamination. Multiple process connections and available materials ensure a perfect fit and performance even in aggressive media. Better still, its low cell volume speeds up sensor response times, thus providing you with fast measuring values.
Fast measuring values thanks to low cell volume
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Certified biocompatibility according to USP class VI
Ultra-hygienic thanks to electropolished surface Ra=0.4 µm (16 µinch)
Wide range of materials and process connections for perfect fit into every application
Wide range of optical window materials and path lengths for optimum adaption to every process
The OUA260 flow cell is used in combination with:
OUSAF12 Suspended solids and color sensor
OUSAF22 Color sensor
OUSAF44 UV absorption sensor
OUSTF10 Turbidity and suspended solids sensor
Typical applications are:
OUA260 is suitable for hazardous area use.
