Immersion assembly
Dipfit CPA111

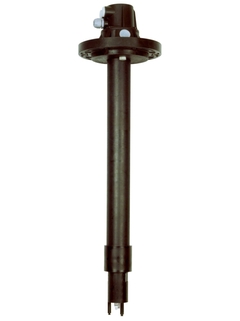

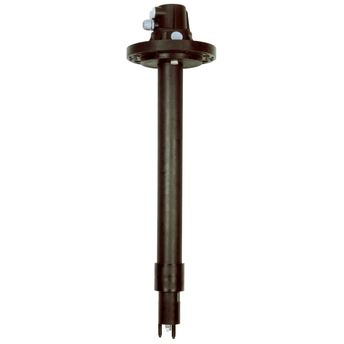

Dipfit CPA111 - Immersion assembly for up to three sensors ©Endress+Hauser

Universal assembly for the water and wastewater industry

The Dipfit CPA111 immersion assembly is designed for applications in open and closed tanks. It offers space for three sensors that can be easily mounted and removed via the bayonet lock. The adjustable flange gives you the required flexibility for universal use. Dipfit is the time- and cost-efficient solution for standard water and wastewater treatment.

  • 장점

    • Simple installation and removal of electrode holder due to bayonet lock

    • Flexible immersion depth thanks to adjustable flange

    • Reduces installation effort by providing 3 mounting positions for 120 mm sensors or an optional cleaning unit

    • Made of...

  • 적용 분야

    Dipfit CPA111 is intended for universal use in open basins, channels and closed tanks in:

    • Wastewater

    • Water treatment

    It is suitable for use with pressures of up to 4 bar.

특징 및 사양

뒤로

Details

  • 측정 원리

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Installation

    Immersion assembly

  • Characteristic

    For open and closed tanks and channels

  • Design

    - bayonet technology - 3 electrode installation locations - 120 mm electrodes - variable assembly length - integrated spray cleaning CPR31 - external spray cleaning CPR30 - process connection with fix or adjustable flange.

  • Material

    Holder: PPSealing : EPDM

  • Dimension

    500 - 3000 mm,
    (19.7 - 118 inch), special lengths on request

  • Process temperature

    max. 80°C
    ( 176°F)

  • Process pressure

    max. 4 bar at 20°C
    (58 psi at 68°F)

  • Connection

    - Suspended assembly - lap joint flange DN100- pressurized flange DN100/PN4 - adjustable flange DN100

  • 측정 원리

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Installation

    Immersion assembly

  • Characteristic

    For open and closed tanks and channels

  • Design

    - bayonet technology - 3 electrode installation locations - 120 mm electrodes - variable holder length - integrated spray cleaning CPR31 - external spray cleaning CPR30 - process connection with fix or adjustable flange.

  • Material

    Holder: PPSealing : EPDM

  • Dimension

    500 - 3000 mm,
    (19.7 - 118 inch), special lengths on request

  • Process temperature

    max. 80°C
    (176°F)

  • Process pressure

    max. 4 bar at 20°C
    (58 psi at 68°F)

  • Connection

    - Suspended assembly - lap joint flange DN100 - pressurized flange DN100/PN4 - adjustable flange DN100
