Process assembly
Unifit CPA842

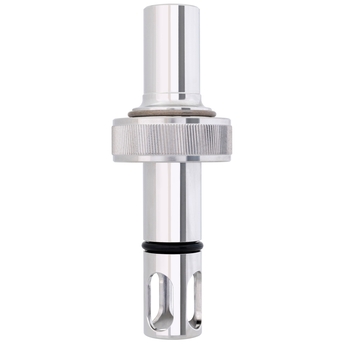

Assembly for fixed installation of pH/ORP, oxygen and cell growth sensors in pipes and tanks. ©Endress+Hauser

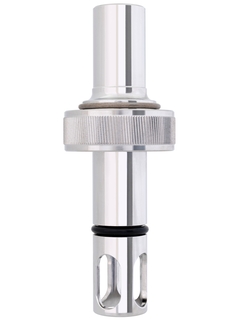

Hygienic assembly for fixed installation of pH/ORP, oxygen and cell growth sensors in pipes and tanks.

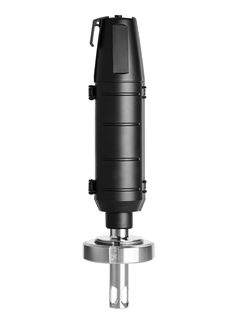

The Unifit CPA842 assembly with the optional cable protection. ©Endress+Hauser

The Unifit CPA842 assembly with the optional cable protection.

Hygienic assembly for the life sciences, food & beverage industries

The Unifit CPA842 process assembly meets highest requirements concerning inline cleaning and sterilization. It allows the easy installation of pH/ORP, oxygen, conductivity or cell growth sensors into tanks and pipelines of hygienic and sterile applications. Unifit is designed according to EHEDG, 3-A, ASME BPE, FDA and USP 88 class VI.

  • 장점

    • Hygienic design according to EHEDG class I, 3-A standard 74-05, FDA, ASME BPE and USP 88 class VI avoids cross-contamination

    • No contamination thanks to leak-tight, built-in electrode seal

    • Less build-up of residues thanks to electropolished surface (Ra...

  • 적용 분야

    Unifit CPA842 is intended for permanent installation in tanks and pipework in:

    • Food and beverage

    • Life sciences

    • Chemicals

    It is suitable for use with pressures of up to 16 bar (stainless steel).

Details

  • 측정 원리

    Glass electrode

  • 측정 원리

    Glass electrode

  • 측정 원리

    Glass electrode

  • 측정 원리

    Glass electrode

  • Application

    Food & Beverage, Life Science, Process

  • Installation

    Fixed installation assembly

  • Characteristic

    Open and closed tank, piping.

  • Design

    Hygienic assembly with corresponding process connections - 12 mm electrodes - optional with protection guard - optional with leakage control

  • Material

    Holder: stainless steel
    sealing: different materials available, FDA conform, USP88 classVI
    - Material certification 3.1.B EN 10204- 3A / EHEDG (steam sterilisability + cleanability) - Surface roughness Ra <0.76 (0.38)

  • Dimension

    29.5 to 82.5 mm
    (1.16 to 3.25 inch)

  • Process temperature

    -15 to 140 °C
    (+5 to 280 °F)

  • Process pressure

    max. 16 bar
    (232 psi)

  • Connection

    DN25 standard, DN25 B.Braun, Clamp 1.5" (short and long), Clamp 1.5'' angled at 15°, 2" Clamp, Varivent Typ N, dairy fitting DN50
