Indumax CLS54 is an inductive conductivity probe for the highest hygienic and sterile demands.

Analog conductivity sensor
Indumax CLS54

Toroidal conductivity sensor for hygienic and sterile applications

CLS54
가격 로드 중
일시적으로 가격을 로드할 수 없습니다.
Price on request
가격 활성화 중
가격: 정보 제공
from CHF ??.-

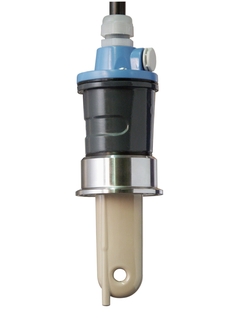

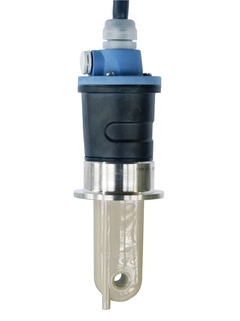

Analog conductivity sensor Indumax CLS54 ©Endress+Hauser
Analog conductivity sensor Indumax CLS54 ©Endress+Hauser
Analog conductivity sensor Indumax CLS54 ©Endress+Hauser
Analog conductivity sensor Indumax CLS54 ©Endress+Hauser

사양 정보

  • Measurement range

    100 µS/cm - 2000 mS/cm Cell constant k: 6,3 1/cm

  • Process temperature

    Process temperature: -10°C - +125°C
    (14°F - 257°F)
    Sterilisation: 150°C/5 bar (max. 60 min.)
    (302°F / 72.5 psi)

  • Process pressure

    12 bar(174 psi)/20°C(68°F)
    8 bar(116 psi)/125°C(257°F)

적용 분야

The Indumax CLS54 inductive conductivity sensor protects all of your products and processes that must meet the strictest hygienic and sterile demands. Its outstanding performance combined with a unique hygienic design ensures highest safety and quality of your products.

Indumax CLS54 measures toroidal conductivity in hygienic food & beverage and life science applications, such as:

  • Phase separation of product/water and product/product mixtures in pipe systems

  • Control of CIP (cleaning in place) processes in the return channel

  • Concentration control in remaking of CIP cleaning agents

  • Product monitoring in pipe systems, bottling plants, quality assurance

  • Leakage monitoring

Its unique hygienic design is certified by EHEDG and 3-A.

장점

  • Unique hygienic design avoids contamination

  • With all hygienic certificates required in hygienic applications

  • Food grade virgin PEEK body without joints nor crevices

  • Certified biocompatibility according to USP class VI

  • Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

  • Compliant with EG 2023/2006 and 1935/2004
