Calibration tool for conductivity sensors
Conducal CLY421

Portable reference calibration for ultrapure water applications

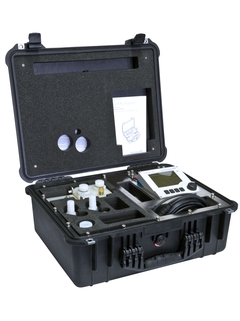

Conducal CLY421 is the ideal calibration tool for conductivity measuring devices in ultrapure water applications. It offers certified comparison measurement and full traceability of your instruments' verification and calibration. Furthermore, the tool is fully compliant with the requirements of the pharmaceutical industry. Conducal comes in a robust, portable hard-top case with battery-powered Liquiline transmitter, allowing flexible calibration in the field.

장바구니에 담기
구성
선택 및 사이즈
로그인 및 구성 후의 가격

비교

장점
Factory calibration traceable to standard reference material by NIST and DAkkS
Factory calibration of Conducal according to ASTM D-5391
Flow assembly with adjusting and monitoring functions according to ASTM D-5391
Accurate calibration by direct use of...

자세히 보기
Factory calibration traceable to standard reference material by NIST and DAkkS
Factory calibration of Conducal according to ASTM D-5391
Flow assembly with adjusting and monitoring functions according to ASTM D-5391
Accurate calibration by direct use of process sample and comparison with the reference system
Rapid setup of comparison measurement with practical flow assembly
Flexible calibration in the field with carrying case and battery-powered Liquiline transmitter

간단히 보기

적용 분야
Conducal CLY421 is a portable calibration and verification tool for quality-relevant conductivity measurements. It is suitable for all ultrapure water applications up to 20 µS/cm:

Life science industry

Food industry

Semiconductor industry

Its...

자세히 보기
Conducal CLY421 is a portable calibration and verification tool for quality-relevant conductivity measurements. It is suitable for all ultrapure water applications up to 20 µS/cm:

Life science industry

Food industry

Semiconductor industry

Its traceability to national standards (NIST and DAkkS) fulfills the highest regulatory requirements.

간단히 보기

특징 및 사양

뒤로

Details

측정 원리

Conductive
Application

Calibration of conductivity measuring loops in ultra-pure water applications in the pharmaindustry; calibration of quality-relevant process measurements in the ultra-pure water range up to 20µS/cm
Characteristic

factory calibrated measuring case with certificate for comparison measurement in ultra-pure water up to 20µS/cm
Measurement range

0,04µS/cm - 20µS/cm
Measuring principle

conductiv conductivity measurement
Design

compact case includes factory calibrated conductivity loop and flow-through assembly
Material

case : injection molded high performance resin

Conductivity sensor CLS15D: SS 316 L, PES-GF20

flow-through assembly: PVDF
Dimension

20.9" x 17.4" x 8.5"
Process temperature

0.. 100C
32 .. 210F
Process pressure

87 psi
Ingres protection

IP67 at closed case without power cord
Additional certifications

factory calibration certificate according ASTM 5391-93, traceable to SRM from NIST and DaakS

자세히 보기
간단히 보기

문서 / 매뉴얼 / 소프트웨어

다운로드 유형

필터

Conductivity calibration set for ultrapure water applications Factory calibrated measurement box Certified for comparison measurement in ultrapure water up to 20µS/cm
Technical Information Conducal CLY421

Technical Information (TI)
Operating Instructions Conducal CLY421
Conductivity calibration kit for ultrapure water applications

Operating Instruction (BA)
Measurement of electrical conductivity (.mp4 format, 70,7MB)
The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Animation

01/14

fr
Measurement of electrical conductivity (.mp4 format, 116 MB)
The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Animation

01/14

폴란드어
Conducal
Product Code: CLY421- Declaration Number: EC_00152_02.16

EU Declaration

독일어 , 영어 , fr
Conducal
Product Code: CLY421- Declaration Number: EC_00152_01.16

EU Declaration

독일어 , 영어 , fr
