사양 정보
-
Process temperature
-60 °C...+280 °C
(-76 °F...+540 °F,
(300°C / 572 °F 50h, cumulated -
Process pressure / max. overpressure limit
Vacuum...100 bar
(Vacuum...1450 psi)
적용 분야

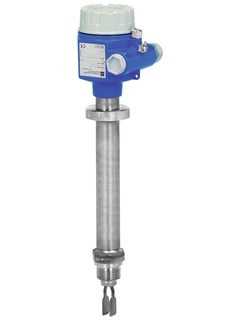

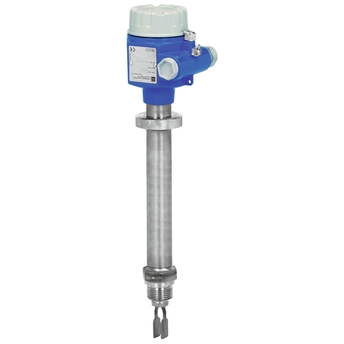

Liquiphant FT70 is a point level switch for use in hazardous areas with all international certificates. FTL70 is especially designed for applications with high process temperatures up to 280°C and can be used for Safety Instrumented Systems up to SIL2, in homogeneous redundancy up to SIL3. An integrated second line of defense offers the highest degree of safety. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Point level switch for all liquids.
Process connections: Threads and flanges
Temperature: -60 to +280°C (-76 to +540°F)
Pressure: -1 to +100bar (-14.5 to +1,450psi)
Sensor material: 316L, Alloy (PFA and Enamel on request)
International explosion protection certificates, overfill protection WHG, marine approvals, SIL
장점
Use in safety systems requiring functional safety to SIL2 in accordance with
IEC 61508/IEC 61511-1With welded gas tight feedthrough maximum safety in the event of damaged sensor
Wide variety of electronics, e.g. NAMUR, relay, thyristor, PFM signal output: the right connection for every process control system
Large number of process connections to choose from: universal usage
No calibration: quick, low-cost start-up
No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed functionFDA approved materials (PFA Edlon)
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
기술 정보(TI)
Liquiphant S FTL70, FTL71 Technical Information
영어 버전 - 02/2017
High-temperature point level switch for all kinds of liquids
EN KO 13/02/201709/07/201016/06/200906/10/2005언어:
영어
버전:
13/02/2017
파일 크기:
962.1 KB
파일 이름:
TI00354FEN_1316.pdf
-
-
-
기술 정보(TI)
Liquiphant S FTL70, FTL71 Technical Information
High-temperature point level switch for all kinds of liquids
EN KO 13/02/201709/07/201016/06/200906/10/2005언어:
영어
버전:
13/02/2017
파일 크기:
962.1 KB
파일 이름:
TI00354FEN_1316.pdf
-
-
-
사용 설명서(BA)
Liquiphant M/S FTL50, FTL51, FTL50H, FTL51H, FTL51C, FTL70, FTL71 Electronic insert FEL50A PA
Vibration Limit Switch
Level limit switch for all liquids.
Suitable for use in hazardous areas, food and pharmaceuticalsEN KO 10/08/2004언어:
영어
버전:
10/08/2004
파일 크기:
836 KB
파일 이름:
BA141FEN.pdf
-
-
-
요약 지침서(KA)
Bedienungsanleitung/ Operating Instuction Liquiphant.
Sliding Sleeve
EN KO 01/05/200801/11/1998언어:
영어
버전:
01/05/2008
파일 크기:
314.8 KB
파일 이름:
KA100fa6_0308.pdf
-
-
-
요약 지침서(KA)
Liquiphant S FTL70, FTL71 Operating Instructions
High-temperature point level switch for all kinds of liquids
EN KO 20/01/201729/06/201609/07/201001/02/2006언어:
영어
버전:
20/01/2017
파일 크기:
1.1 MB
파일 이름:
KA00172FA6_1417.pdf
-
-
-
요약 지침서(KA)
Exchange of sensor on Liquiphant M/S
Exchange of sensor on Liquiphant M/S
EN KO 24/04/2012언어:
영어
버전:
24/04/2012
파일 크기:
398.2 KB
파일 이름:
KA00529FA2_0908.pdf
-
-
-
요약 지침서(KA)
Bedienungsanleitung/ Operating Instuctions Liquiphant M/S + FEL57
Selbsttest
Self testEN KO 27/02/201701/03/2002언어:
영어
버전:
27/02/2017
파일 크기:
227.1 KB
파일 이름:
KA00147FA6_1316.pdf
-
-
-
설치 설명서(EA)
EA Fork protection Marine application
Liquiphant
EN KO 31/01/2024언어:
영어
버전:
31/01/2024
파일 크기:
485.8 KB
파일 이름:
EA01463FEN_0122-00.pdf
-
-
-
설치 설명서(EA)
Diagnostics plug Installation instruction
Liquiphant M/S/FailSafe, Soliphant T/M
EN KO 24/04/201511/10/2012언어:
영어
버전:
24/04/2015
파일 크기:
71.5 KB
파일 이름:
EA01063FA2_0215.pdf
-
-
-
설치 설명서(EA)
Cover for housing T13 terminal compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN KO 24/02/202215/08/201409/08/2012언어:
영어
버전:
24/02/2022
파일 크기:
119 KB
파일 이름:
EA01050FA2_0322.pdf
-
