Source Container FQG61

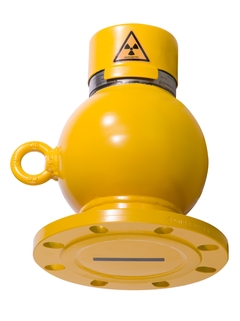

Source Container FQG61 ©Endress+Hauser

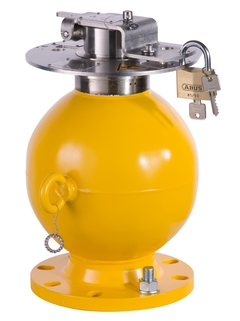

Source Container FQG61 ©Endress+Hauser
Source Container FQG61 ©Endress+Hauser

Radiometric measuring principle

Animation source containers

Animation Gamma Modulator

Radiation source container with source holder for manual or pneumatic switch-on/switch-off

The FQG61 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

  • 장점

    • High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement

    • Reliable measurement due to lightweight container and almost spherical design which...

  • 적용 분야

    Designed to hold the radioactive source during radiometric point level detection, continuous level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only and is damped in all other directions.

    • Activity: 137Cs...

Details

  • 측정 원리

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 5/ 20/ 40 degrees
    Approximately 40kg

  • Ambient temperature

    -40 °C...+200 °C

    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Hygienic

    Non-contact

  • Specialities

    Control area calculation with Applicator

  • 측정 원리

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 40 / 20 degrees
    Approximately 40kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -40 °C...+200 °C

    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST

  • 측정 원리

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 5 degrees
    Approximately 40kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -40 °C...+200 °C

    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST

  • 측정 원리

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 40 / 20 degrees
    Approximately 40kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -40 °C...+200 °C

    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST

  • 측정 원리

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 5 degrees
    Approximately 40kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -40 °C...+200 °C

    (-40 °F...+392 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Certificates / Approvals

    ATEX, GOST
