Conductive
Point level switch

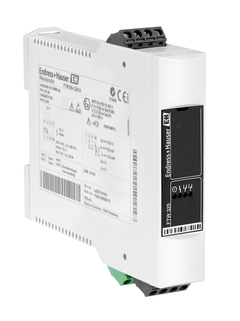

Nivotester FTW325

Point level switch with intrinsically safe signal circuit for connection to a conductive sensor

The Nivotester FTW325 is a point level switch with intrinsically safe signal circuit for connection to a conductive sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.

Lean 선택

단순 제품
손쉬운 선택, 설치 및 작동

기술적 우수성

단순성

FLEX란?

기본 제품
신뢰성, 내구성, 유지보수가 쉬움

기술적 우수성

단순성

FLEX란?

하이엔드 제품
우수한 기능성과 편리성

기술적 우수성

단순성

FLEX란?

전문 제품
까다로운 어플리케이션을 위한 설계

기술적 우수성

단순성

구성에 따라 다름

FLEX란?

FLEX 선택	기술적 우수성	단순성
F L E X Fundamental 선택 기본적인 측정 요구사항 충족	기술적 우수성	단순성
F L E X Lean 선택 핵심 프로세스를 손쉽게 처리	기술적 우수성	단순성
F L E X Extended 선택 혁신적인 기술로 프로세스 최적화	기술적 우수성	단순성
F L E X Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족	기술적 우수성	단순성 구성에 따라 다름

FLEX 선택에 대해 자세히 알아보기

사이징

비교

사양 정보
Min. density of medium

min. 10 uS

Loading alternative products

빠른 선택

제안된 옵션 중에서 선택하십시오.

<%label%>
-- selected coding

-- selected label
<%label%>
더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

FTW325

세부 정보 표시 세부 정보 숨기기

세부 정보 표시

빠른 선택으로 돌아가기

<%feature%>

<%coding%>

<%label%>

장바구니에 담기

선택적 추가 항목

계속하려면 개별 사양 구성 을 사용하십시오.

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.

장점
Cost-effective point level switch for conductive liquids
Intrinsically safe signal circuit EEx ia IIC for using sensors in hazardous areas
Line monitoring up to the sensor
Configurable sensitivity range
Alarm relay can be switched as second level relay (SPDT)
Easy wiring thanks to pluggable terminal blocks

적용 분야
For point level detection in tanks for liquids also for hazardous areas. Overfill prevention for tanks with flammable or non-flammable water-polluting liquids. Pump dry running protection.

Mounting: Standard rails in cabinet

Two-point control and point...

자세히 보기
For point level detection in tanks for liquids also for hazardous areas. Overfill prevention for tanks with flammable or non-flammable water-polluting liquids. Pump dry running protection.

Mounting: Standard rails in cabinet

Two-point control and point level detection

Ambient temperature: -20 to +60°C (-4 to +140°F)

International explosion protection certificates

간단히 보기

특징 및 사양

뒤로

Details

측정 원리

Conductive
Characteristic / Application

2-channel level measurement device, level limit, switch delay, two-point control
Supply / Communication

85V ... 253V AC
20V ... 30V AC
20V ... 60V DC
Ambient temperature

-20 °C ... 60 °C
(-4 °F ... 140 °F)
Min. density of medium

min. 10 uS
Communication

2 relays SPDT/DPDT
Certificates / Approvals

ATEX, FM, CSA, NEPSI, EAC
Safety approvals

Overfill protection WHG

자세히 보기
간단히 보기

문서 / 매뉴얼 / 소프트웨어

다운로드 유형

필터

Nivotester FTW 325 Technical Information
Point level switch with intrinsically safe signal circuit for connecting
to conductive sensors

Technical Information (TI)
Nivotester FTW325 Operating Instructions
Point level switch with intrinsically safe signal circuit for connecting
to conductive sensors

Short Instruction (KA)

08/15

독일어 , 영어 , 스페인어 , fr , 이탈리아어 , 네덜란드어
Safety Instructions Nivotester FTW325
[Ex ia] IIC/IIB
GYJ111022 (NEPSI)

Ex Safety Instructions (XA)
Nivotester FTW325
II (1) G [Ex ia Ga] IIC/IIB
II (2) G [Ex ib Gb] IIC/IIB
II (1) D [Ex ia Da] IIIC

Ex Safety Instructions (XA)
Nivotester FTW325
[Ex ia Ga] IIB/IIC X
[Ex ia Da] IIIC X

Ex Safety Instructions (XA)
Konduktive Sonden, Überwachungselektronik, Nivotester FTW470Z, FTW520Z, FTW570Z, FTW325
WHG

Allgemeine bauaufsichtliche Zulassung

Z-65.13-101 (DIBt)

Certificate (ZE)
Nivotester FTW325
CSA

Drawing No.: 960532-0071 A

Drawing Type: Installation Drawing

Certificate FM/CSA (ZD)
Nivotester FTW325
FM

Drawing No.: 960532-0070 A

Drawing Type: Control Drawing

Certificate FM/CSA (ZD)
Catálogo soluciones esenciales
Alta calidad a precios competitivos

Competence Brochure (CP)

01/17

스페인어
Nivotester FTW325
Füllstandgrenzschalter für leitfähige Flüssigkeiten

Tender Text

08/12

독일어
Nivotester
Product Code: FTW325-
Declaration Number: HE_00839_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

중국어
Nivotester
Product Code: FTW325-
Declaration Number: HE_00388_01.16

Manufacturer Declaration

영어
Nivotester, Solicap S
Product Code: FTI77-, FTL325N-, FTL325P-, FTW325-
Declaration Number: HE_00339_01.16

Manufacturer Declaration

독일어 , 영어
Nivotester
Product Code: FTW325-
Declaration Number: EC_00210_03.16

EU Declaration

독일어 , 영어 , fr
Nivotester
Product Code: FTW325-
Declaration Number: DMT02ATEXE203X

EU Declaration

독일어 , 영어 , fr
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex
Product Code: FTL260-, FMP52-, FMP54-, FMR52-, FMR54-, FMP55-, FMP53-, FMR51-, FMP51-, FMR53-, FMR62-, FTL51-, FMR50-, FTL51H-, FTL50H-, FMP50-, NMR84-, FTL51C-, FMR60-, FTL71-, FTL70-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL80-, FTL825-, FTL85-, FTW31-, FTL81-, FTW32-, FTW325-, FTW360-, NMR81-, FTI52-, FMI21-, FMI51-, FMI52-, FMR10-, FMR20-, FMR530-, FMR532-, FMR533-, FMR540-, FTC325-, FTI51-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05528

Miscellaneous

러시아어
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Einstabsonde, Dreistabsonde, Doppelstabsonde
Product Code: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-
Region/Country: Russia (Declaration of Conformity), Russia (TR CU)
Approval Agency: EAC
Approval Number: RU D-DE.MO10.B.05531

Miscellaneous

러시아어
Nivotester
Product Code: FTC325-, FTL325N-, FTL325P-, FTW325-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP004 003 137

Miscellaneous

러시아어
Nivotester, Liquipoint, Nivotester FailSafe
Product Code: FTC325-, FTL325N-, FTL325P-, FTL375P-, FTW325-, FTL825-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TС RU D-DE.MU62.B.02537

Miscellaneous

러시아어
Nivotester
Product Code: FTW325-
Region/Country: China
Protection: [Ex ia]

Explosion Protection

중국어
Nivotester
Product Code: FTW325-
Region/Country: Canada, USA
Approval Agency: CSA
Category: I,II,III//A,B,C,D,E,F,G, I/zone 0
Protection: AIS, Ex [ia] IIC

Explosion Protection

영어
Nivotester
Product Code: FTW325-
Region/Country: Europe (ATEX)
Approval Agency: EXAM (DMT, BVS)
Category: II (1) D, II (1) G
Protection: [Ex ia Da] IIIC, [Ex ia Ga] IIC

Explosion Protection

영어
Nivotester
Product Code: FTW325-
Region/Country: USA
Approval Agency: FM
Category: I,II,III DIV.1 GRP.A,B,C,D,E,F,G
Protection: AEx [ia]

Explosion Protection

영어
Nivotester
Product Code: FTL325N-, FTL325P-, FTW325-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: [Ex ia Da], [Ex ia Ga]

Explosion Protection

러시아어
Doppelstabsonde, Dreistabsonde, Einstabsonde, Liquipoint T, Multicap, Nivotester, Seilsonde, Stabsonde
Product Code: FTW570Z-, FTW520Z-, FTW470Z-, FTW325-, FTW32-, FTW31-, EW11Z-, DC26-, DC16-, 21561ZF-, 21360ZF-, 11961Z-, 11375Z-, 11363Z-, 11362Z-, 11356ZF-
Region/Country: Germany
Approval Agency: DIBt
Approval Number: DIBTZ-65-13-101

Overfill Prevention
