Liquipoint FTW33

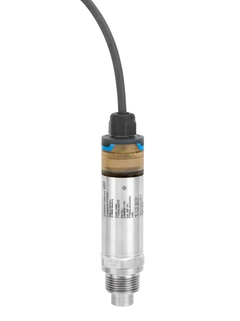

Liquipoint FTW33 ©Endress+Hauser

다양한 매체에 소개된 Liquipoint FTW33

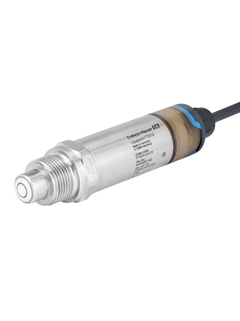

Liquipoint FTW33 ©Endress+Hauser

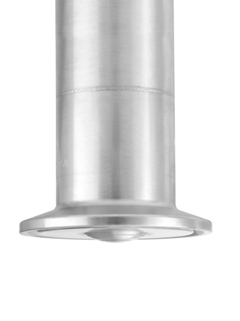

Liquipoint FTW33 ©Endress+Hauser

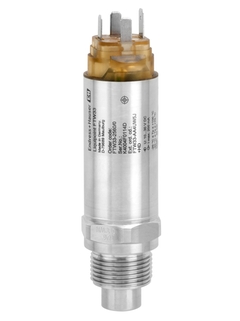

Liquipoint FTW33 ©Endress+Hauser

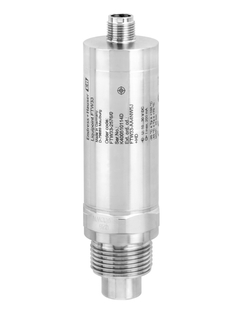

Liquipoint FTW33 ©Endress+Hauser

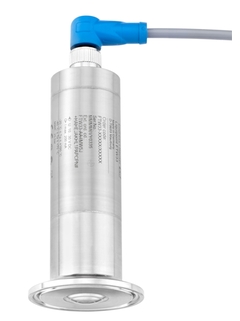

Liquipoint FTW33 ©Endress+Hauser

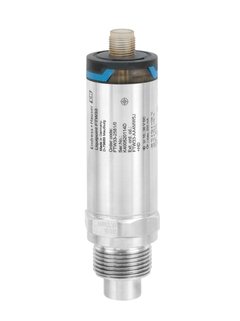

Liquipoint FTW33 ©Endress+Hauser

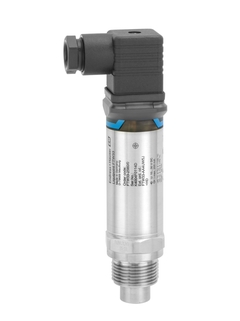

Liquipoint FTW33 ©Endress+Hauser

액체와 반죽 상태의 유체를 위한 초소형 플러시 장착 프로브

Liquipoint FTW33은 식품 산업을 위해 개발된 제품으로 모든 국제 위생 요건을 충족합니다. 모든 산업 부문의 다양한 어플리케이션에서 사용할 수 있으며, 반죽 상태이거나 끈적이는 유체와 축적물이 많이 생기는 유체에서 사용하는 데 적합합니다.
혁신성:
- 유성 및 수성 유체와 끈적이는 유체
- 플러시 장착
신뢰성:
- 능동 축적물 보상
- 시험 자석을 사용한 기능 검사
편리성:
- 교정 또는 조정 불필요
- 특수한 공구가 필요하지 않은 플러그 앤 플레이 방식
- IO-Link 연결 지원

  • 장점

    • 플러시가 장착된 디자인으로 위생 산업에 매우 적합, 파이프 피깅(Pigging) 가능

    • 축적물 보상으로 안전하고 신뢰도가 높은 측정과 스위칭 보장; 모든 Fieldbus 시스템에서 쉽게 구성하고 유연하게 통합할 수 있는 IO-Link를 지원해 비용과 복잡성 감소

    • 각각의 유체에 맞도록 조정할 필요 없음

    • 컴팩트한 디자인으로 위험한 조건이나 접근하기 어려운 장소에서도 간편하게 설치 가능

    • 다양한 프로세스 연결부를 통해 신규 및 기존 플랜트에 설치 가능

    • CIP 및...

  • 적용 분야

    교반기가 있거나 없는 저장, 혼합 및 프로세스 용기와 배관에서 사용. 전기 전도도가 >1 μS/cm이거나 유전상수가 >2인 유체에 사용. 식품 산업을 위해 개발. 식품 산업에서 발생하는 거품 검출 가능.

    • 프로세스 연결부: 나사 및 위생 연결부

    • 센서 길이: 플러시 장착

    • 온도: -20 ~ +100°C (-4 ~ +212°F), 1시간 동안 150°C (302°F)까지 CIP/SIP

    • 압력: 0 ~ 25bar abs (0 ~ 362,5psi abs)

    • 위생 인증

특징 및 사양

뒤로

Details

  • 측정 원리

    Conductive

  • Characteristic / Application

    Compact point level switch for using in pipes and in storage, mixing and process vessels with or without an agitator, for water based or oil based media, with active build up compensation,flush mounting

  • Specialities

    CIP and SIP suitable

    Conductive foam is detectable or can be switched off

  • Supply / Communication

    10…30 V DC

  • Ambient temperature

    -40 ... 70°C

    (-40 ... 158°F)

  • Process temperature

    Standard:
    -20 ... 100°C

    Cleaning:
    -20 ... 150°C for 1h

    ( -4 ... 302°F for 1h)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 25 bar

    (Vacuum ... 362,5 psi)

  • Main wetted parts

    Sensor: 316L

    Sensor isolation: PEEK

  • Process connection

    Thread G1, G1/2, G3/4, M24

  • Process connection hygienic

    Clamp ISO 2852 1 to 1 1/2", 2",
    DIN11851 Pipe union

  • Communication

    DC PNP

  • Certificates / Approvals

    CSA C/US

  • Design approvals

    EN 10204-3.1

  • Hygienic approvals

    3A, EHEDG

  • Options

    Weld-in adapter,

    Process adapter for hygienic process connections
