사양 정보
Accuracy
Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class standard acc. to ASTM E230 Class 2 acc. to IEC 60584-2
Response time
t90 around 100 s depending on configuration
Max. process pressure (static)
depending on the configuration
Operating temperature range
Basic PT100 TF: -50 °C …200 °C (-58 °F …392 °F) Typ K: max. 1.100 °C (max. 2.012 °F)
Max. immersion length on request
적용 분야
기본 센서 기술, 비방폭 지역 어플리케이션용, 확장가능한 넥(neck), 경제적인 비용의 장치가 특징인 RTD 또는 TC 어셈블리입니다. 이 계기는 4 ~ 20 mA 출력 또는 HART® 통신을 지원하는 헤드 트렌스미터와 Bluetooth® 지원 헤드 트랜스미터(옵션)와 함께 사용할 수 있어 직접 배선식 센서에 비해 측정 정확성과 신뢰성이 크게 향상됩니다
Fundamental 선택
기술적 우수성
단순성
©Endress+Hauser
FLEX 선택
기술적 우수성
단순성
Fundamental 선택
기본적인 측정 요구사항 충족
기술적 우수성
단순성
기술적 우수성
단순성
Extended 선택
혁신적인 기술로 프로세스 최적화
기술적 우수성
단순성
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
기술적 우수성
단순성
Loading alternative products
성공 사례
Medical autoclaves
New sensor technology automates recalibrations to reduce risk in batch sterilization. Learn More!
전체 글 읽기
측정 원리
Resistance Temperature Detector
Characteristic / Application
metric style modular temperature assembly universal range of application with neck incl. thermowell / protection tube (metal)
Thermowell / protection tube
welded protection tube or to be used with thermowell
Outer diameter protection tube / Insert
Thermowell: 9x1,25 mm 11x2 mm
Max. immersion length on request
Material protection tube/ thermowell
Process connection
Thread: G1/2" NPT1/2" M20x1.5, M27x2, M33x2 Compression fitting: NPT1/2", G1/2", G1" Flansche: DN25 DN40 B1 ASME 1" 150 RF ASME 1" 300 RF ASME 1 1/2" 150 RF ASME 2" 150 RF ASME 2" 300 RF
Operating temperature range
Basic PT100 TF: -50 °C …200 °C (-58 °F …392 °F) Typ K: max. 1.100 °C (max. 2.012 °F)
Max. process pressure (static)
depending on the configuration
Accuracy
Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class standard acc. to ASTM E230 Class 2 acc. to IEC 60584-2
Response time
t90 around 100 s depending on configuration
Integration head transmitter
최다 다운로드

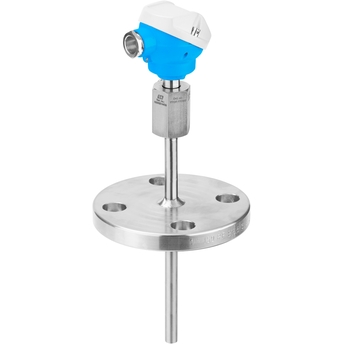

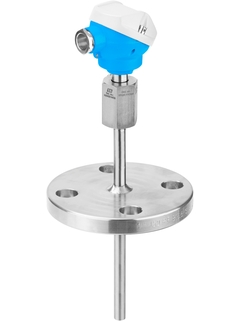

iTHERM ModuLine TM121
Thermometer with RTD or TC insert complete with protection tube
manufactured from pipe or tube material
EN
KO
DE ES FR IT JA PL PT RU ZH
15/06/2022
31/03/2021
15/04/2019
언어:
영어
버전:
15/06/2022
파일 크기:
2 MB
파일 이름:
TI01455TEN_0322-00.pdf
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411,
TM412
Thermometers and inserts
Ex nA IIC T6...T1 Gc
언어:
영어
버전:
31/07/2020
파일 크기:
173.5 KB
파일 이름:
XA02111TEN_0120.pdf
17 설명서
Thermometer with RTD or TC insert complete with protection tube manufactured from pipe or tube material
EN
KO
독일어 스페인어 French 이탈리아어 일본어 폴란드어 포르투갈어 러시아어 중국어
15/06/2022
31/03/2021
15/04/2019
언어:
영어
버전:
15/06/2022
파일 크기:
2 MB
파일 이름:
TI01455TEN_0322-00.pdf
RTD 또는 TC 인서트가 탑재된 산업용 범용 모듈식 온도계
EN
KO
불가리아어 체코어 덴마크어 독일어 그리스어 스페인어 에스토니아어 핀란드어 French 크로아티아어 헝가리어 인도네시아어 이탈리아어 일본어 Lithuanian Latvian 네덜란드어 노르웨이어 폴란드어 포르투갈어 루마니아어 러시아어 슬로바키아어 슬로베니아어 스웨덴어 태국어 터키어 중국어
31/08/2018
언어:
한국어
버전:
31/08/2018
파일 크기:
1.2 MB
파일 이름:
BA01915TKO_0118.pdf
TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411,
TM412
Thermometers and inserts Ex nA IIC T6...T1 Gc
언어:
영어
버전:
31/07/2020
파일 크기:
173.5 KB
파일 이름:
XA02111TEN_0120.pdf
Automatic identification of physical objects
EN
KO
독일어
10/05/2023
03/12/2021
01/11/2021
언어:
영어
버전:
10/05/2023
파일 크기:
649 KB
파일 이름:
SD02817TEN_0323-00.pdf
Technical documentation in other languages
언어:
영어
버전:
14/07/2021
파일 크기:
478.5 KB
파일 이름:
SD02429R09EN_0121.pdf
Temperatur und Systemprodukte für
Kraftwerke & Energie, Chemie und Öl & Gas
Temperatur und Systemprodukte für Kraftwerke & Energie, Chemie und Öl & Gas Enthält iTHERM ModuLine, iTHERM MultiSens, iTEMP Temperaturtransmitters, Systemprodukte
언어:
독일어
버전:
02/06/2023
파일 크기:
6.7 MB
파일 이름:
PU01318T_04.23_DE_PECHOG_Booklet.pdf
Temperature and system products for
Power & Energy, Chemical and Oil & Gas
including iTHERM ModuLine,
iTHERM MultiSens,
iTEMP temperature
Transmitters, system products
Temperature and system products for Power & Energy, Chemical and Oil & Gas including innovative iTHERM ModuLine, iTHERM MultiSens temperature assemblies, iTEMP temperature transmitters and system products
언어:
영어
버전:
02/06/2023
파일 크기:
6.7 MB
파일 이름:
PU01318T_04.23_EN_PECHOG_Booklet.pdf
Product family: Process RTD general purpose
Product root: TM121- Declaration number: HE_01246_01.20 Manufacturer specification: RoHS Additional information: China RoHS
언어:
중국어
버전:
06/03/2020
파일 크기:
324.8 KB
파일 이름:
HE_01246_01.20 China RoHS TM121.pdf
Product family: Accessories: Bar stock thermowell, Accessories: Pipe thermowell, Accessories: Inserts, Magphant, Process RTD general
purpose, Process RTD hygienic, RTD thermometer
Product root: DTT31-, DTT35-, TK40-, TM101-, TM111-, TM121-, TM131-, TM311-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TS111-, TS212-, TT131-, TT151-, TT411-, TT412- Declaration number: HE_01494_01.21 Manufacturer specification: Food hygiene Additional information: BSE, TSE
언어:
영어
버전:
27/07/2023
파일 크기:
266 KB
파일 이름:
HE_00886_07_17.pdf
Product family: Process RTD general purpose
Product root: TM101-, TM111-, TM112-, TM121-, TM131-, TM151-, TM152- Declaration number: TM1X1 SUPPLIERS DOC Manufacturer specification: RoHS, Explosion protection, EMC Additional information: ACMA, Australia
언어:
영어
버전:
12/04/2024
파일 크기:
149.4 KB
파일 이름:
TM1x1 Suppliers Dec of Conformity_240412.pdf
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Adapter M20x1.5 exter./M24x1.5 intern.VA
Cable gland NPT1/2, D4.5-8.5 IP68
Spare parts kit sealing TA30A/TA30D
Spare parts kit ring D21/di 10xgreen
Spare parts kit o-ring (silicon) 71x3
Plug M12 PA, M20, 316, IP67, NEMA6, -40...+105oC
Spare parts kit copper ring G1/2"
Spare parts kit copper ring G3/4"
Spare parts kit copper ring G1"
Spare parts kit copper ring M20x1.5
Spare parts kit gasket ring D21/d6 Viton
Spare parts kit gasket ring D21/d6 Neop.
Spare parts kit gasket ring D21/d3 Viton
Spare parts kit gasket ring D21/d3 Neop.
Term.block DIN B (42mm) 2 term. Spc 5 pc
Term.block DIN B (42mm) 3 term. 5 pc
Term.block DIN B (42mm) 4 term. 5 pc
Term.block DIN B (42mm) 6 term. 5 pc
Spare Parts Kit Seal Insert TK40
iTEMP TMT31, Transmitter 4-20mA
iTEMP TMT71, Transmitter 4-20mA
iTEMP TMT72, Transmitter HART
Thermo-conductive paste FDA-conform 30g
Thermoconductive Paste HSC 340, 100g
