Omnigrad S TR61
Explosion-proof Pt100 thermometer

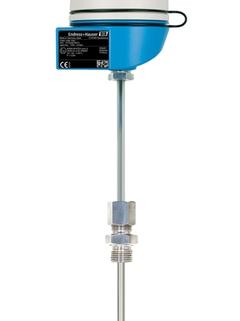

Product picture of resistance thermometer TR61 ©Endress+Hauser
Omnigrad S TR61

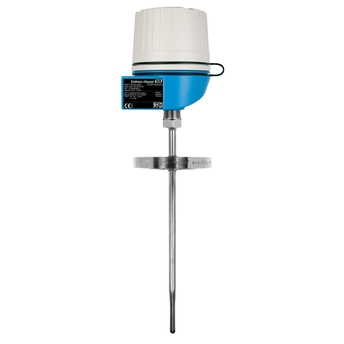

Explosion-proof Pt100 thermometer ©Endress+Hauser

Safe monitoring of process temperatures in challenging applications e.g. in the Oil & Gas industry

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. Flexible configuration possible.

  • 장점

    • Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), flameproof (Ex d), non-sparking (Ex nA)

    • High degree of insert compatibility and design as per DIN 43772

    • Extension neck to protect the head transmitter from overheating

    • Fast...

  • 적용 분야

    • Heavy duty applications

    • Oil & Gas processing industry

    • Measuring range: -200 to +600 °C (-328 to 1112 °F)

    • Static pressure range up to 75 bar dependent on the used process connection

    • Protection class: IP68

특징 및 사양

뒤로

Details

  • 측정 원리

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    modular temperature assembly

    for heavy duty applications

    suitable for hazardous areas

    with neck

    incl. thermowell / protection tube (metal)
    usable with insert StrongSens

  • Terminal head

    TA21H – aluminium – screw cover w. chain

    TA21H – stainless steel – screw cover w. chain

    TA30H – aluminium – w. or w/o. display

    TA30H – aluminium – one or two cable entries NPT1/2", NPT3/4", M20x1.5

  • Thermowell / protection tube

    welded protection tube

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    9,0 mm (0,35'')

    11,0 mm (0,43'')

    12,0 mm (0,47'')

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

  • Material protection tube/ thermowell

    1.4404 (316L)

    1.4571 (316Ti)

    AlloyC276 (2.4819)

  • Optional coating

    Not defined

  • Process connection

    male thread:

    G1/2"

    G3/4"

    G1"

    NPT1/2"

    NPT3/4"

    M20x1,5

    compression fitting:

    G1/2"

    flange:

    ASME 1" 150 RF (B16.5)

    ASME 1" 300 RF (B16.5)

    DN25 PN40 B1 (EN1092)

    DN40 PN40 B1(EN1092)

    DN50 PN40 B1 (EN1092)

  • Tip shape

    straight

    reduced

    tapered

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    PT100 TF StrongSens:

    -50 °C ...500 °C

    (58 °F ...932 °F)

    PT100 WW:

    -200 °C ...600 °C

    (-328 °F ...1.112 °F)

    PT100 TF:

    -50 °C ...400 °C

    (58 °F ...752 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)

  • Accuracy

    class A acc. to IEC 60751

    class AA acc. to IEC 60751

  • Response time

    depending on configuration

    t50 = 8 s

    t90 = 21 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX II

    IECEx

    NEPSI

    EAC Ex

    Explosion proof

  • Certification

    Gost Metrology

    SIL (transmitter only)
