Omnigrad M TR11
Modular RTD thermometer

Omnigrad M TR11

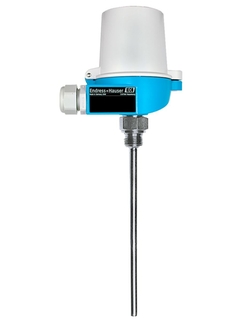

Modular RTD thermometer ©Endress+Hauser

Comprehensive and common temperature measurement technology for almost all branches of industry

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

  • 장점

    • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

    • High degree of insert compatibility and design as per DIN 43772

    • Fast response time with reduced/tapered tip form

    • ...

  • 적용 분야

    • Universal range of application

    • Measuring range: -200 to +600 °C (-328 to 1112 °F)

    • Pressure range up to 75 bar (1088 psi)

    • Degree of protection: up to IP68

특징 및 사양

뒤로

Details

  • 측정 원리

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    modular temperature assembly

    universal range of application

    suitable for hazardous areas

    threaded process connection

    without neck
    incl. thermowell / protection tube (metal)

    can be used with StrongSens insert

  • Terminal head

    TA20A - aluminium - cover with screws

    TA20B - plastics - screw cover

    TA30A - E+H, aluminium - cover low - w. or w/o. display

    TA30D - E+H, aluminium - cover high

    TA20A - aluminium - cover with screws

    TA20B - plastics - screw cover
    TA20D - aluminium - hinged cover high

    TA20J - SS - deep-drawn w. or w/o. display

    TA20R - SS - machined w. screw cover

    TA20W - aluminium - cover w. snap fit

    TA21E - aluminium - screw cover w. chain

  • Thermowell / protection tube

    welded protection tube

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    8,0 mm (0,31")

    9,0 mm (0,35'')

    11,0 mm (0,43'')

    12,0 mm (0,47'')

    14,0 mm (0,55")

    15,0 mm (0,59")

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

  • Material protection tube/ thermowell

    1.4401 (316)

    1.4404 (316L)

    1.4571 (316Ti)

  • Optional coating

    Not defined

  • Process connection

    male thread:

    G3/8"

    G1/2"

    G3/4"

    NPT1/2"

    NPT3/4"

    M20x1.5

  • Tip shape

    straight

    reduced

    tapered

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    PT100 TF StrongSens:

    -50 °C ...500 °C

    (-58 °F ...932 °F)

    PT100 WW:

    -200 °C ...600 °C

    (-328 °F ...1.112 °F)

    PT100 TF:

    -50 °C ...400 °C

    (-58 °F ...752 °F)

  • Max. process pressure (static)

    at 20 °C: 75 bar (1088 psi)

  • Accuracy

    class A acc. to IEC 60751

    class AA acc. to IEC 60751

  • Response time

    depending on configuration

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX II

    ATEX IECEx

    NEPSI

    IECEx

    EAC Ex

  • Certification

    Gost Metrology

    SIL (transmitter only)

    Marine approval
