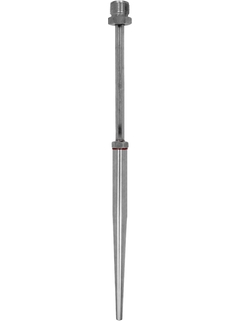

Omnigrad M TW15
Thermowell made of drilled barstock material. Mainly used in heavy duty or industrial applications
Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.
Extension, immersion length and total length can be chosen according to process requirements
A wide choice of dimensions, materials and process connections is available
Special versions can be manufactured according to customer requirements

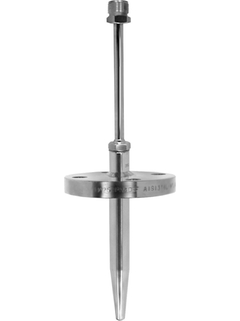

The process connection can either be weld-in or flanged
TW15 is designed for use with resistance and thermocouple thermometers in heavy duty applications.
Modular configuration according to DIN 43772 (form 4/4F) enable a use in all industrial processes with severe thermal and mechanical stresses.
특징 및 사양
문서 / 매뉴얼 / 소프트웨어
액세서리 / 예비 부품
기존 제품 / 신제품
선행 제품: TA573, TA574
