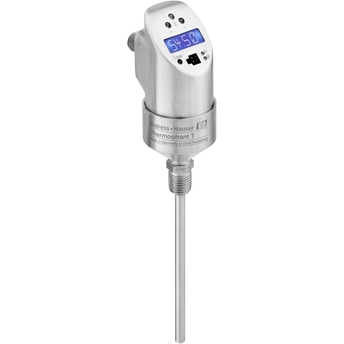

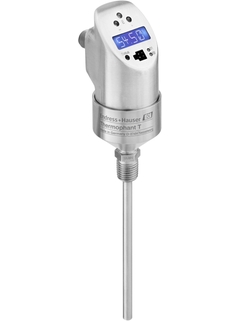

Thermophant T TTR31
Compact and cost-saving for safe monitoring of process temperatures
Cost efficiency, optimal use of space, reliable operation, easy installation and commissioning indicate modern process measuring technology. The temperature switch completely fulfills these requirements. Designed for the safe measurement and monitoring of process temperatures it can be selected between one or two switch outputs as well as one switch output and one standardized analog output. Vibration-proof integrated thin-film sensors guarantee highest operational safety.
개별 사양 구성
Integrated switching electronics for decentral and economic process monitoring and control
High reproducibility and long-term stability
Function control and information on-site thanks to LEDs and digital display
Long-term stable temperature sensor made...
Temperature switch for the monitoring, display and control of process temperatures in a range from -50 to 150 °C (-58 to 302 °F). Thermophant T TTR 31- with thread connections or coupling.
One PNP switch output
Two PNP switch outputs
문서 / 매뉴얼 / 소프트웨어
액세서리 / 예비 부품
Order code 51516983
Commubox FXA291 (Hardware)
Serial USB Computer Interface Technical Data: - USB Version1.1 or higher - Power supply via USB - IP51; NEMA/Typ 3 - Ambient temperature: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Scope of deliovery: Commubox FXA 291 MS Windows USB driver Device is submitted for CSA/FM application. The device may not be modified and may be used with intrinsically safe circuits with corresponding characteristics only (see safety certificate).
Order code 60001328
Gasket DIN7603 A CU 21x26x1.5
Order code 51004751
Collar welding boss d6 PEEK + screw
moveable with sealing taper, washer + pressure screw G1/2, material of wetted parts: 316L, PEEK, max. Prozessdruck: 10 bar (145 psi)
Order code 51004752
Collar welding boss d6 PEEK w/o screw
moveable with sealing taper + washer, material of wetted parts: 316L, PEEK, max. process pressure: 10 bar (145 psi)
Order code 51005148
Cable M12x1 l=5m
5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.
Order code 51006327
M12 elbow plug ready for cable, IP67,PG7
Order code TTR31X-AA
Rubber cap for interface terminal Contains 5 pieces
Order code TA50-
Compression Fitting TA50
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
The unit is not repairable
