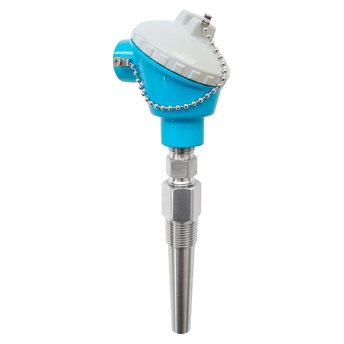

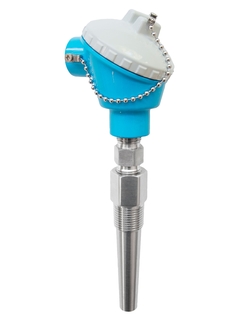

Product picture resistance thermometer TH13

TH13
Modular RTD thermometer, US style

Best in class temperature measurement technology for general applications

TH13

비교

사양 정보

Accuracy

class AA acc. to IEC 60751
class A acc. to IEC 60751
class B acc. to IEC 60751
Response time

depending on configuration
Max. process pressure (static)

at 20 °C: 100 bar (1.450 psi)
depends on configuration
Operating temperature range

PT100 WW:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
iTHERM StrongSens:
-50 °C … 500 °C
(-58 °F … 932 °F)
PT100 TF:
-50 °C … 200 °C
(-58 °F … 392 °F)
Max. immersion length on request

up to 24" (609 mm)
others on request

모든 사양 보기

적용 분야

The robust device with a barstock thermowell is a complete unit ready for use with various housing transmitter heads to meet the application and space requirement needs. The unit offers enhanced measurement accuracy and reliability. A variety of process connections, dimensions, and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.

The TH13 temperature sensors are RTD assemblies installed in thermowells and designed for use in all types of process industries, including heavy industries, due to their rugged design.
The sensor is made up of a measurement probe with an insulated RTD element, sheath and a thermowell made of barstock material.

The sensor assemblies can be used in process industries such as:

Chemicals
Petrochemical
Power plants
Refineries
Offshore platforms

장점

High flexibility due to modular assembly with standard terminal heads and customized immersion length
One Source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications. Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV)
Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point solution
All iTEMP® transmitters provide long term stability ≤ 0.05 % per year
Fast response time with reduced/tapered tip form
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
