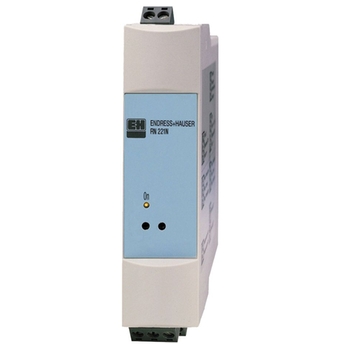

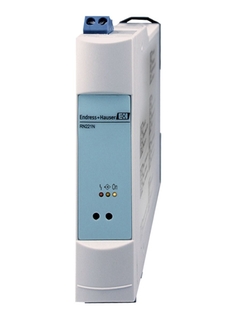

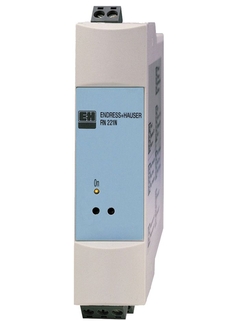

HART 진단 기능이 있는 액티브 배리어
RN221N
4 ~ 20 mA 전류 회로의 안전한 분리를 위한 액티브 배리어 및 전원 공급 장치
액티브 배리어 RN221N은 필요한 경우 방폭 지역에서도 트랜스미터 등에 전원을 공급하고 갈바닉 절연 신호를 전송합니다. HART® 모니터링(옵션)을 이용하면 트랜스미터 상태를 모니터링할 수 있고, 오류가 발생하면 RN221N의 릴레이가 알람을 보냅니다. 릴레이가 능동적으로 다시 설정되어야 하기 때문에 짧게 발생하는 오류도 쉽게 찾을 수 있습니다.
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
사양 정보
-
Input
1 x analog 4...20 mA
-
Output
1 x analog 4...20 mA
-
Power Supply
Not defined
-
빠른 선택
개별 사양 구성
-
장점
광범위한 전원 공급 장치, 유연한 전원
컴팩트한 DIN 레일 하우징
국제 Ex 승인; 해양 승인
양방향 HART 전송. HART 센서 설정용 통신 소켓. HART 프로토콜을 통해 연결된 트랜스미터의 상태 정보 평가.
1차 또는 2차 마스터 작동 모드, 자동 선택
조기 경고 시스템을 통한 센서 모니터링
릴레이 접점의 수동 또는 자동 리셋
-
적용 분야
4~20 mA 전류 회로의 갈바닉 절연
대형 루프 회로 제거
2선식 트랜스미터 전원 공급
조기 경고 시스템을 통한 SMART 트랜스미터 모니터링
