이 제품은 더 이상 제공되지 않습니다.
구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.
기존 제품
-
신제품
FLEX 선택 기술적 우수성 단순성 - F
- L
- E
- X
Fundamental 선택
기본적인 측정 요구사항 충족
기술적 우수성 단순성 - F
- L
- E
- X
Lean 선택
핵심 프로세스를 손쉽게 처리
기술적 우수성 단순성 - F
- L
- E
- X
Extended 선택
혁신적인 기술로 프로세스 최적화
기술적 우수성 단순성 - F
- L
- E
- X
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
기술적 우수성 단순성 구성에 따라 다름
-

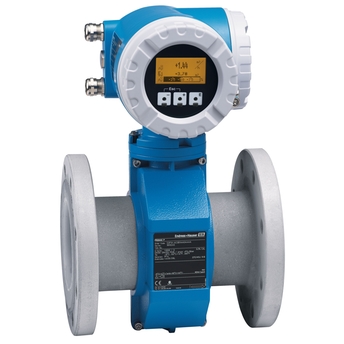

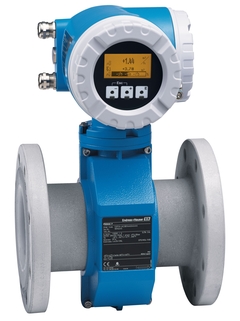

측정 원리
Electromagnetic
-
Product headline
std_productprofile_product_usp_34659_1508940719.
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures. -
Sensor features
Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA. -
Transmitter features
std_productprofile_product_benefits_34656_1508940491. std_productprofile_product_benefits_34658_1508940614. std_productprofile_product_benefits_34657_1508940613.
std_successorproducts_product_differentiating_tech_features_35324_1509527963. std_successorproducts_product_differentiating_tech_features_35325_1509527962. std_successorproducts_product_differentiating_tech_features_35326_1509527956. -
Nominal diameter range
DN 15...600
1/2"...24" -
Max. measurement error
±0.2%
-
Measuring range
0...9'600 m3/h
-
Max. process pressure
PN10...40
Cl 150...300
JIS 10...20K
AS 2129 Table E
AS 4087 PN16 -
Medium temperature range
-40...+180°C
(-40...+356°F) -
Ambient temperature range
-20...+60°C
-40...+60°C (optional) -
Degree of protection
IP 67 (NEMA 4x)
IP 68 (Nema 6P) -
Display/Operation
Four line display with backlit
Touch control -
Outputs
4...20 mA
Pulse / frequenz (aktive/passive)
Relays
Status -
Inputs
Status
Current input -
Digital communication
HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus -
Hazardous area approvals
ATEX, FM, CSA
-
Product safety
CE, C-tick, EAC marking
-
-
기술 정보(TI)
Proline Promag 50P, 53P
-
기술 정보(TI)
영어 버전 - 02/2010New version available in EnglishElectromagnetic Flow Measuring System for measuring the flow rate
measurementin chemical or process applications.EN KO 18/02/2010언어:
영어
버전:
18/02/2010
파일 크기:
875.1 KB
파일 이름:
TI047DEN_1109.pdf
-
-
-
사용 설명서(BA)
Promag 53 Profibus PA/-DP Instrukcja Obsługi: opis montażu
-
사용 설명서(BA)
폴란드어 버전 - 10/2003New version available in EnglishPrzepływomierz elektromagnetyczny do pomiaru przep
ływu cieczy.EN KO 15/10/2003언어:
폴란드어
버전:
15/10/2003
파일 크기:
3.1 MB
파일 이름:
Ba053dpl.pdf
-
-
-
사용 설명서(BA)
Promag 53 PROFIBUS PA/DP Manual de las funciones del equipo
-
사용 설명서(BA)
스페인어 버전 - 10/2005New version available in EnglishSistema electromagnético para medición de caudal.
EN KO 01/10/200501/04/2001언어:
스페인어
버전:
01/10/2005
파일 크기:
2.8 MB
파일 이름:
BA054Des_v10.05.pdf
-
-
-
사용 설명서(BA)
Proline Promag 53 HART Manuel de mise en service
-
사용 설명서(BA)
프랑스어 버전 - 02/2015New version available in EnglishDébitmètre électromagnétique
EN KO 01/02/201518/12/200901/03/2005언어:
French
버전:
01/02/2015
파일 크기:
5 MB
파일 이름:
BA00047DFR_1515.pdf
-
-
-
사용 설명서(BA)
Proline Promag 53 HART Description des fonctions
-
사용 설명서(BA)
프랑스어 버전 - 12/2009New version available in EnglishDébitmètre électromagnétique
EN KO 18/12/200901/03/200515/10/2003언어:
French
버전:
18/12/2009
파일 크기:
3.4 MB
파일 이름:
Ba048DFR_1209.pdf
-
-
-
요약 지침서(KA)
Proline Promag 53 Brief Operating Instructions
-
요약 지침서(KA)
영어 버전 - 02/2015New version available in EnglishElectromagnetic flowmeter
EN KO 01/02/201501/04/201401/03/201101/09/2007언어:
영어
버전:
01/02/2015
파일 크기:
3.2 MB
파일 이름:
KA00028DEN_1515.pdf
-
-
-
설치 설명서(EA)
EA Replacing cover and O-ring
-
설치 설명서(EA)
영어 버전 - 10/2024New version available in EnglishProline 10, 23, 50, 51, 53, 55, 400, 800, 40, 80, 83, 84, 8ME, 8FF, 8FE
,8CM, 90, 91, 92, 93, 65, 72, 73EN KO 15/10/202401/10/2018언어:
영어
버전:
15/10/2024
파일 크기:
797.3 KB
파일 이름:
EA00098DA2_1624-00.pdf
-
-
-
설치 설명서(EA)
Replacing T-DAT Installation Instructions
-
설치 설명서(EA)
영어 버전 - 11/2018New version available in EnglishPromag 23, 53, 55, Promass 83, 84, 8WF, 8ME, Cubemass DCI 8CN, CNGmass
DCI 8DF, Prosonic Flow 91, 93, t-mass 65EN KO 15/11/2018언어:
영어
버전:
15/11/2018
파일 크기:
481.6 KB
파일 이름:
EA00072DA2_1418.pdf
-
-
-
설치 설명서(EA)
Conversion transmitter Promag 50/53 to Promag 55 - remote version
-
설치 설명서(EA)
영어 버전 - 11/2009New version available in EnglishConversion Instructions
EN KO 23/11/2009언어:
영어
버전:
23/11/2009
파일 크기:
1.3 MB
파일 이름:
EA00059DA2_0309.pdf
-
-
-
설치 설명서(EA)
I/O-board, subprint, screening sheed Installation Instructions
-
설치 설명서(EA)
영어 버전 - 05/2017New version available in EnglishPromag 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, Cubemass DCI 8CN,
CNGmass DCI 8DF, Prosonic Flow 90, 93, t-mass 65EN KO 01/05/201718/11/2011언어:
영어
버전:
01/05/2017
파일 크기:
350.6 KB
파일 이름:
EA00062DA2_1517.pdf
-
